Steel Wire Drawing Machines
Our latest CRM2026 Wire Drawing Machine is engineered for high-precision and high-efficiency wire production. It is perfectly suited for drawing carbon steel and stainless steel wires with an inlet diameter of up to 6.5 mm. Through 14 continuous drawing passes, the machine delivers a smooth, consistent finished wire with a final diameter of 1.0 mm.
Designed for superior performance, stability, and long-term durability, the CRM2026 is an ideal choice for manufacturers seeking reliable wire reduction solutions with excellent surface quality.
Main Components of a Wire Drawing Machine:
If you are seeking a reliable production line for stainless steel or carbon steel wire, we are here to support you. Contact us for a complete, one-stop solution tailored to your factory’s needs, covering everything from technical specifications and performance to configuration options, installation requirements, and after-sales support.
The type of wire payoff can be customized based on the customer’s choice of raw materials and specific design requirements. This allows the system to accommodate different wire diameters, materials, and production needs, ensuring optimal feeding performance, consistent tension, and minimal wire damage for each application. Customization can include variations in payoff type, size, and guiding mechanisms to best suit the intended production line.
Each pass uses die boxes equipped with diamond or PCD dies to gradually reduce the wire diameter. The machine is supported by a cooling and lubrication system to protect the wire and dies during high-speed operation, as well as a transmission system and tension control system to maintain synchronized speeds and stable drawing forces. The finished wire is collected by the take-up unit, which may be a spooler, coiler, or double-spool system.

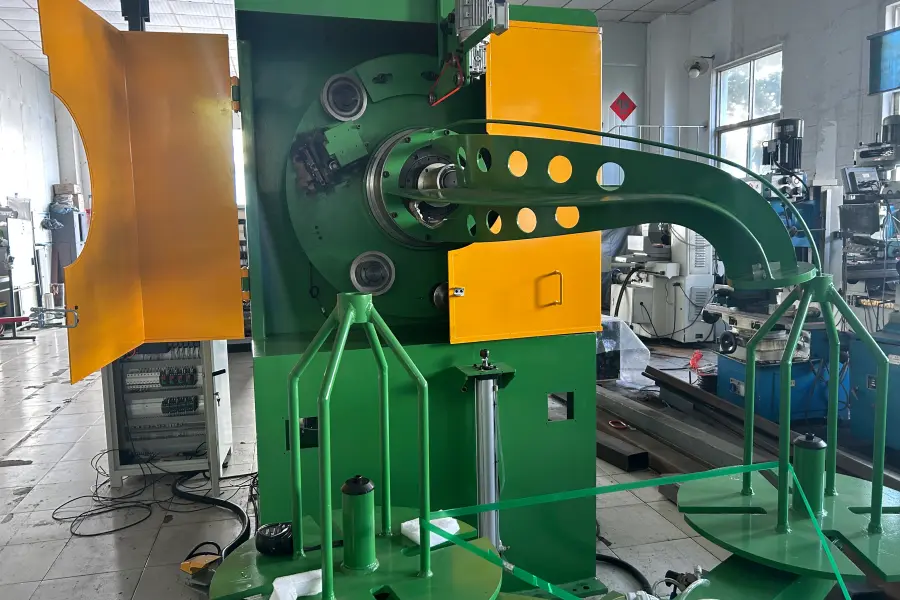

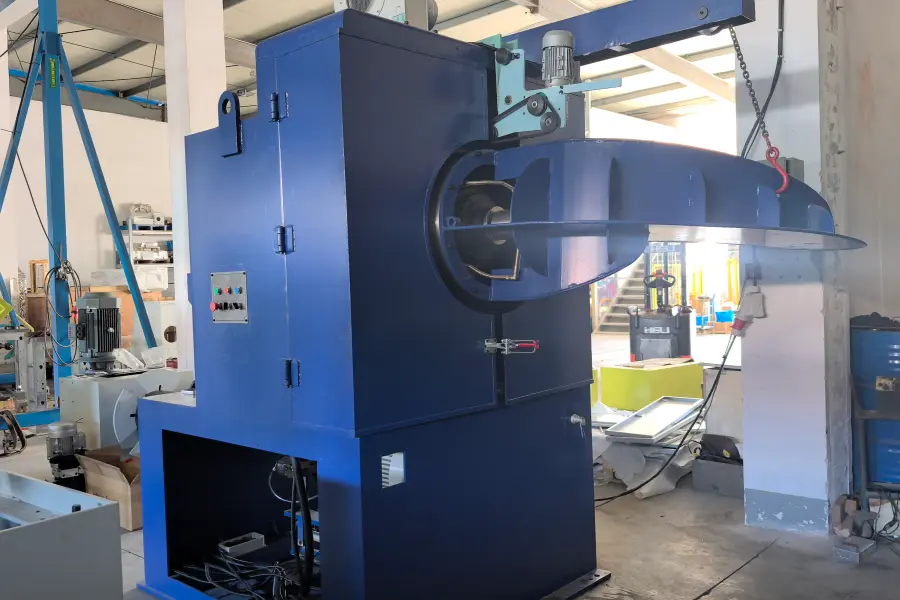

An elephant-trunk payoff uses a flexible, curved guiding tube resembling an elephant’s trunk to feed wire into the machine. This design ensures smooth and steady wire feeding, minimizes vibration, and prevents wire scratching or tangling. It is especially suitable for delicate or high-precision wires, as it provides gentle handling and maintains consistent tension throughout the payoff process. The system is simple, reliable for every users
Main Technical Parameters of Wire Drawing Machine
- Block diameter and quantity: 600 mm, 14 blocks
- Inlet wire diameter: Φ6.5 mm
- Outlet wire diameter: Φ1.0 mm
- Inlet material tensile strength: ≤1100 MPa
- Outlet wire tensile strength: ≤1400 MPa
- Total reduction ratio: 95%
- All functions are managed through an advanced electrical control system with PLC, inverters, and a touch-screen interface for automation, speed adjustment, and real-time monitoring.

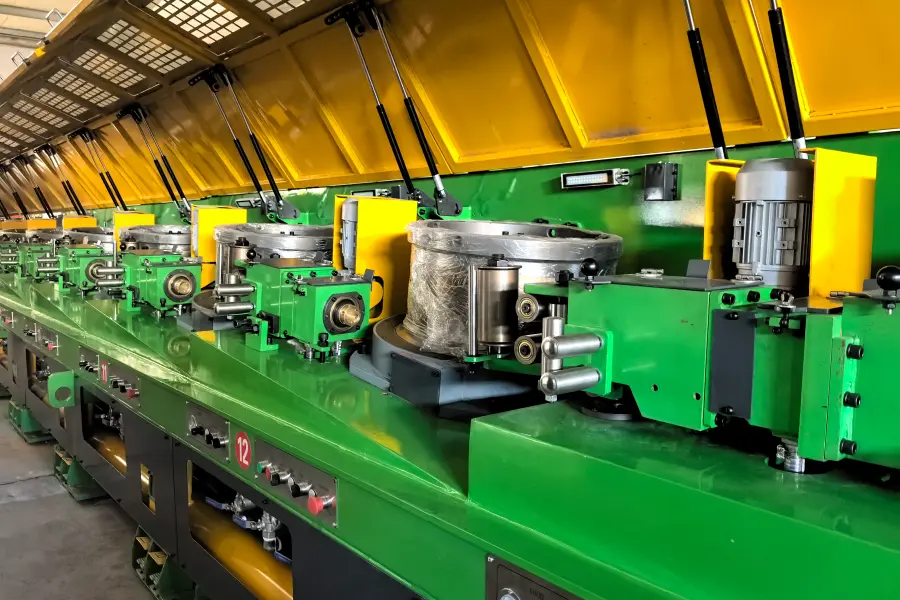

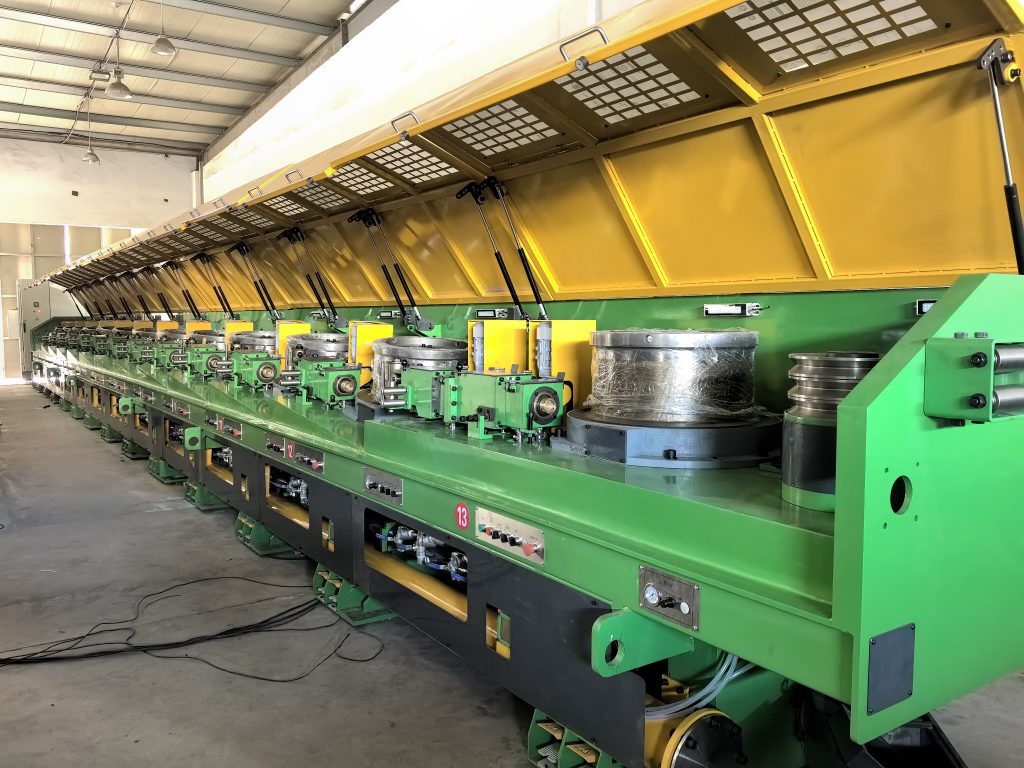

CRM2026 Straight-Line Wire Drawing Machine Overview

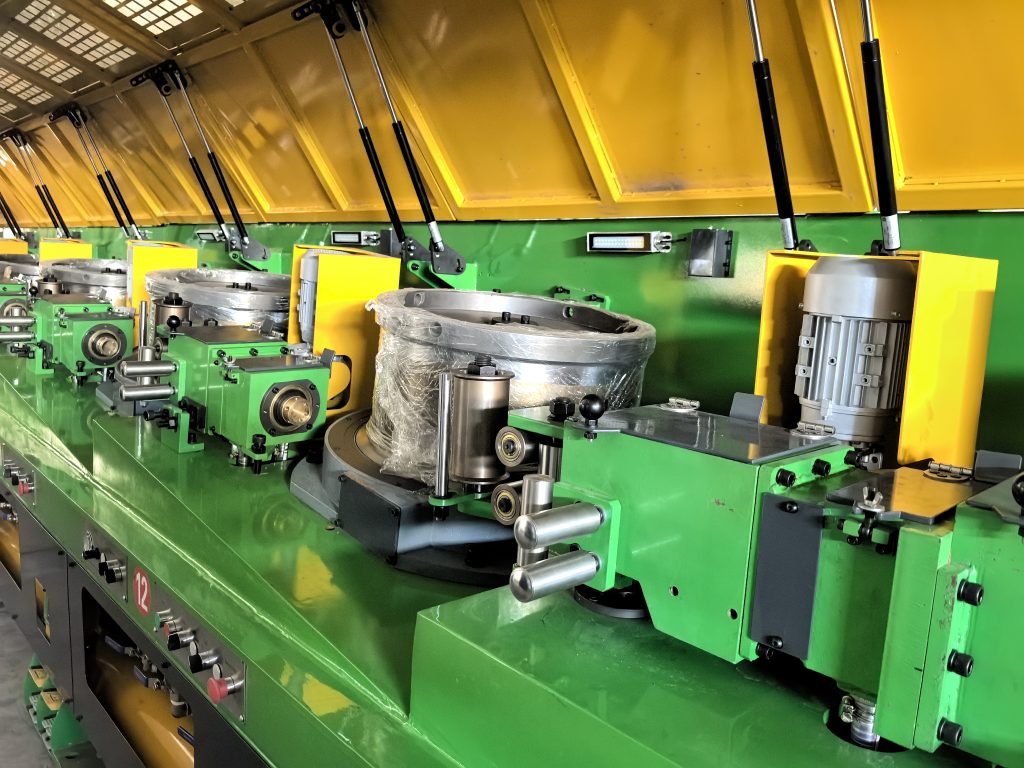

A CRM2026 straight-line wire drawing machine consists of several essential components that work together to ensure efficient, stable, and precise wire drawing. These include the pay-off unit, which feeds the raw wire smoothly into the machine, and the straight-line drawing blocks (capstans), which perform the drawing process through multiple passes with wear-resistant drums.
Applications About Wire Drawing Machines
Our Wire drawing machines are essential equipment widely used across various industries.
Typical applications include:
- Fasteners and hardware manufacturing (screws, bolts, nuts, nails)
- Construction and building materials (rebar tie wire, mesh wire, fencing wire,mesh wire)
- Automotive and aerospace components (control cables, high tensile springs, hard springs,precision parts)
- Electrical and electronics industries (copper/aluminum conductors, magnet wire)
- Metal forming and welding (welding wire, core wire, flux-cored welding wire，solid wires,filler wire)
- Stainless steel products (kitchenware, industrial wire rope,Piston rings， medical wire
- Telecommunications and power transmission (high-strength steel wire, optical cable armoring wire)
- Textile machinery and equipment (needle wire, reed wire,heddle wire)
Frequently Asked Questioins
To help customers clearly understand the capabilities of our wire drawing machines and select the most suitable model for their production needs, we have prepared the following Frequently Asked Questions (FAQs).
