Wedge Wire Rolling Machine & Complete Production Line
Sky Bluer designs wedge wire rolling machines and complete production lines for converting round or pre-drawn wire into precise V-shaped, triangular and custom wedge profiles. Each system can be configured with pre-drawing, multi-stage rolling, profile calibration, online measurement and take-up or cut-to-length equipment.

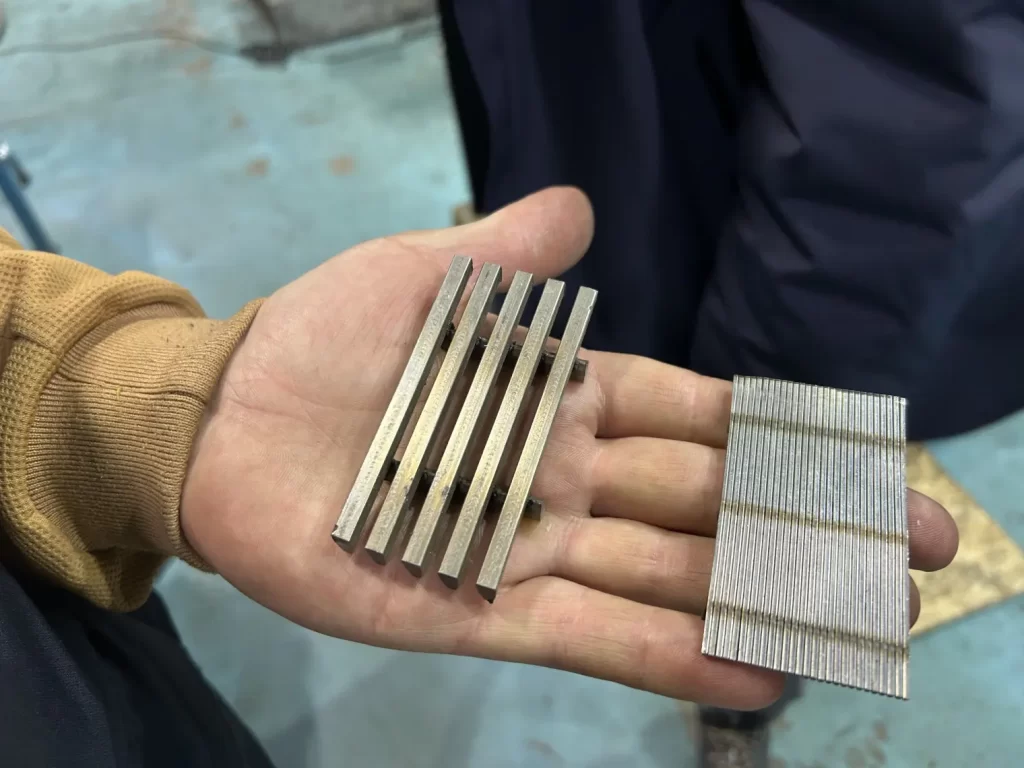

Available Wedge Wire Profiles and Typical Output Sizes
CRM wedge wire rolling systems convert round or pre-drawn wire into V-shaped surface wire, triangular support wire and other precision wedge profiles. Depending on the downstream application, the production line can be configured for coil take-up or straightening and cut-to-length output.
Each profile can be customized according to the required width, height, wedge angle, corner radius, dimensional tolerance and material grade.
| Profile Type | Typical Available Sizes (W × H, mm) | Finished Form | Typical Use |
|---|---|---|---|
| V-Shaped Wire | 0.75 × 1.35, 0.76 × 1.50, 1.50 × 2.50, 2.00 × 5.00, 3.00 × 6.00 | Coil or cut-to-length | Filtration and screening surfaces |
| Triangular Support Wire | 3.00 × 4.50, 3.00 × 5.00, 3.00 × 6.00, 5.00 × 5.00, 5.00 × 8.00 | Straight lengths | Structural support rods |
| Wedge Support Wire | 2.00 × 3.00, 3.00 × 6.00, 3.00 × 12.00, 4.00 × 7.00, 5.00 × 6.00 | Straight lengths | Heavy-duty screen support |
| Custom Profile Wire | According to customer drawing or sample | Coil or straight lengths | Custom filtration and industrial applications |
Note: W indicates profile width and H indicates profile height. The ranges above represent typical production capability. Available W × H combinations depend on the profile design and roll tooling. Custom sizes are available upon request.
Typical materials include stainless steel 304, 304L, 316 and 316L. Other stainless steels and specialty alloys can be evaluated according to their tensile strength, inlet condition, reduction ratio and finished-profile requirements.
The dimensions above represent typical profiles rather than the full production range. Please provide the material grade, inlet wire size, finished-profile drawing, tolerance and required output form so that our engineers can configure the appropriate rolling process
Triangle wire (W × H)in mm. 0.75 × 1.35, 0.76 × 1.5, 1.0 × 2.0, 1.2 × 2.3, 1.5 × 2.5, 2.0 × 3.0, 2.0 × 4.0, 2.5 × 4.0, 2.5 × 4.0, 2.0 × 5.0, 3.0 × 5.0, 3.0 × 6.0.
Triangle wire (W × H). 3.0 × 5.0, 3.0 × 6.0, 5.0 × 8.0.
Wedge wire (W × H). 2.0 × 3.0, 5.0 × 6.0, 4.0 × 7.0.
Triangle wire (W × H). 3 × 4.5, 5 × 5.
Wedge wire (W × H). 3 × 6, 3 × 12
Wedge Wire Production Line Configurations
Select the appropriate configuration according to your inlet material condition, finished-wire format and production requirements. CRM can supply the core rolling section or a fully integrated line incorporating pre-drawing, profile forming, online measurement, cooling, take-up or cut-to-length equipment.
Payoff Parts
Used for smoothly feeding wire into the production line, ensuring stable tension and continuous operation.
Pre-drawing System
Installed before rolling mill to reduce the wire diameter and improve surface quality, ensuring stable input for flat wire rolling.
Oil Filter & Cooling Tank for Wire Drawing
Used for filtering and cooling the drawing oil during wire drawing, ensuring stable oil temperature, improved lubrication…
High Precision Rolling Mills
Designed for accurate shaping of metal wires from round wire with tight tolerance control and excellent surface finish.
Turks Head Rolling Mill
Used for shaping wire into square, rectangular, wedge or custom profiles with precise control over width and thickness.
Rolling Fluid Filtering & Cooling Oil Tank
Used to filter impurities and cool rolling oil, ensuring stable lubrication and optimal rolling performance
Online Wire Diameter Measurement System
Continuously monitors wire thickness and width in real time to ensure dimensional accuracy and quality control.

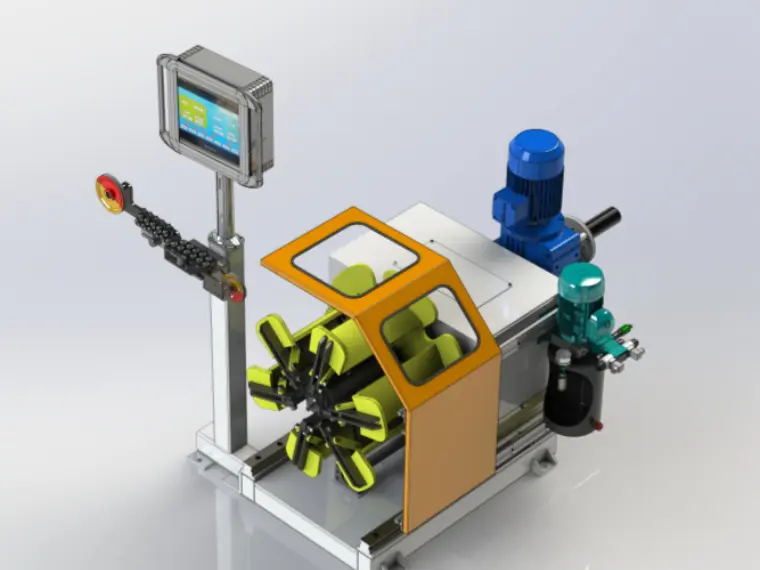

Wire Takeups
Equipment used to wind finished wire onto spools or reels, enabling orderly and efficient wire collection at the end of the production line.

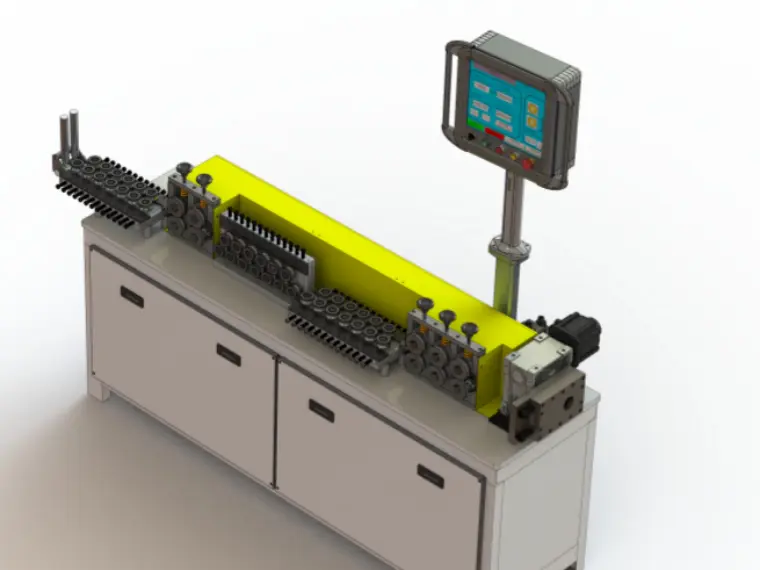

Straightening and Cutting Machines
Designed the Straighten wire and cut it to precise lengths for downstream processing or packaging
Watch the Videos for Types of Wedge Profile Wire Machine
Our company manufactures custom V shaped wire drawing machine and rolling equipment for a variety of companies that produce well-screens, card clothing, and wedge wires,flat wire,squares. Get in touch with us today to learn more about how we can help you more with your metal-forming needs.Below are our typical models of the many applications for wedge-shaped wire.
Playlist
0:16
0:16
0:16
The Ultimate Guide to Wire Forming Equipment

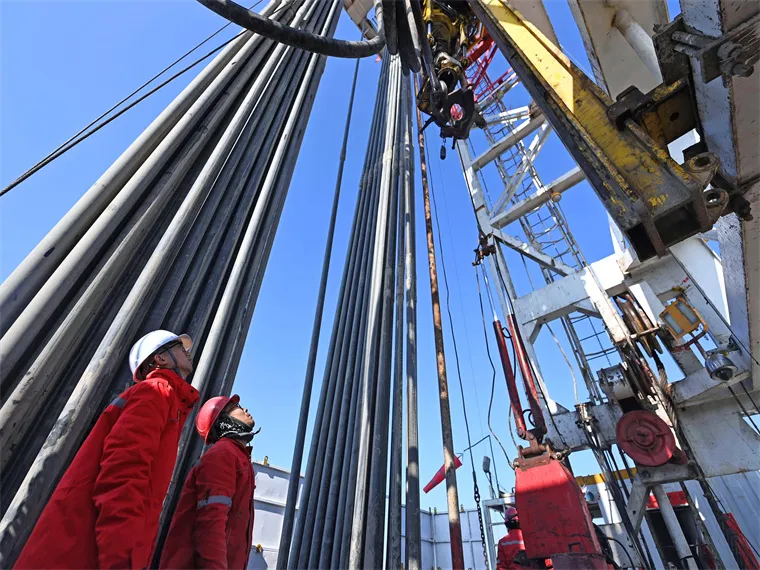

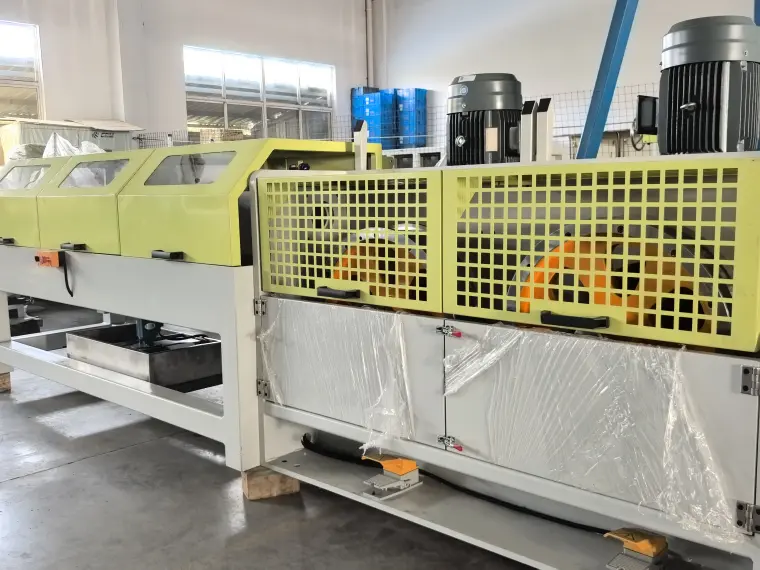

Wire Rolling Machines that make V-shaped wires, also known as Wedge Shaped Wire Equipment The demand for oil and water well screens continue to be strong in many parts of the world, which is attracting more users to metal flattening mills and triangular wire rolling mills. It is our goal to meet this growing demand by providing different companies in the market with flattening and forming equipment that we provide. In filtration applications, wedge wire is usually made of stainless steel and is used for solids like coal or liquids like oil.
Applications About Stainless Steel Wedge Wire

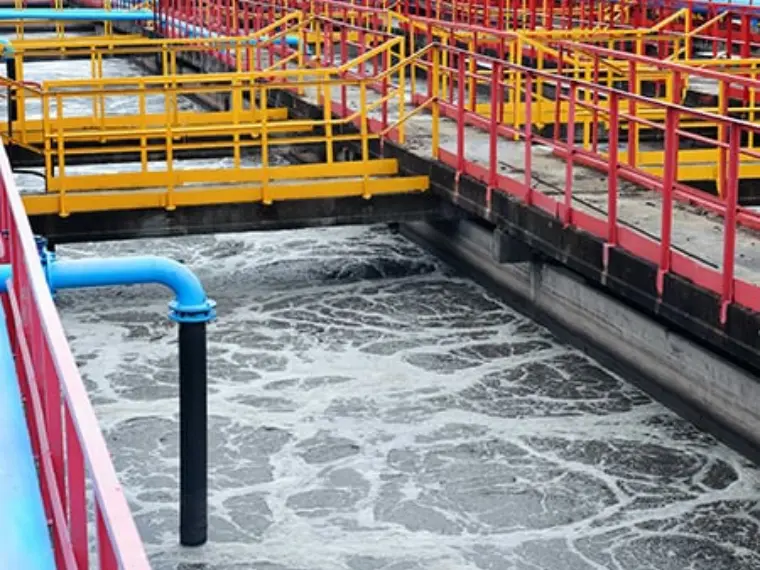

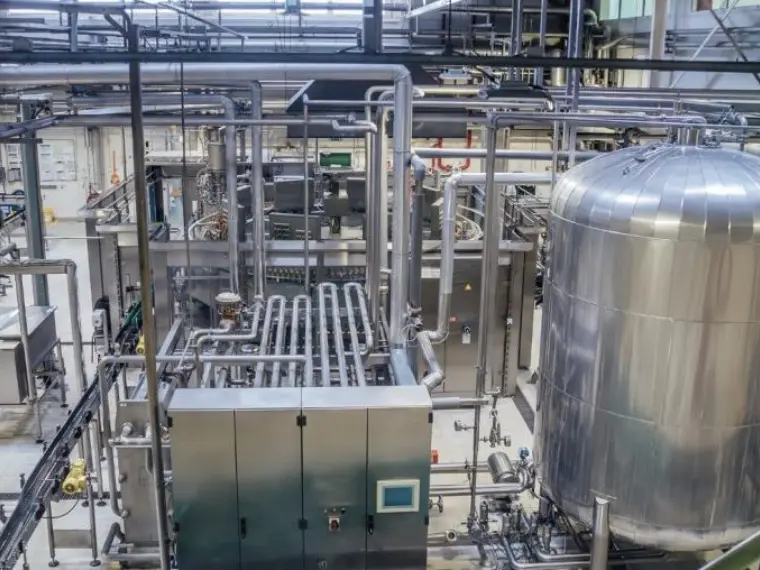

Stainless steel wedge wire is commonly used across multiple industries thanks to its unique profile and high precision. Typical applications include water and wastewater filtration, food and beverage processing, sand control in oil and gas operations, as well as screening in mining and aggregate industries.
Looking for a Flat or Shaped Wire Production Line?
If you’re looking for a production line to manufacture flat, shaped, or square carbon-based wire, get in touch with the experts at Sky Bluer Industries China by filling out our Quote Form today.
