Custom shaped wire is produced with a specific cross-section to meet mechanical, electrical, dimensional, or assembly requirements. Unlike standard round wire, the finished profile may be flat, rectangular, square, oval, half-round, trapezoidal, wedge-shaped, or a completely custom geometry.
Shaped wire is normally produced from round or pre-shaped wire through cold rolling, drawing, profile rolling, Turks head forming, or a combination of these processes. The production route depends on the material, starting wire size, finished cross-section, total reduction, dimensional tolerances, and surface requirements.
For complex profiles, the finished shape is rarely formed in a single pass. Several intermediate profiles may be required to control material flow and progressively develop the final cross-section.
What Is Custom Shaped Wire?
Custom shaped wire refers to wire with a cross-section other than a conventional round section. The profile is developed to perform a specific function or reduce secondary machining in the finished component.
The dimensions that need to be controlled depend on the profile. For a simple flat wire, width and thickness may be the main dimensions. For a complex profile, corner radii, angles, grooves, symmetry, flatness, and other geometric features may also be critical.

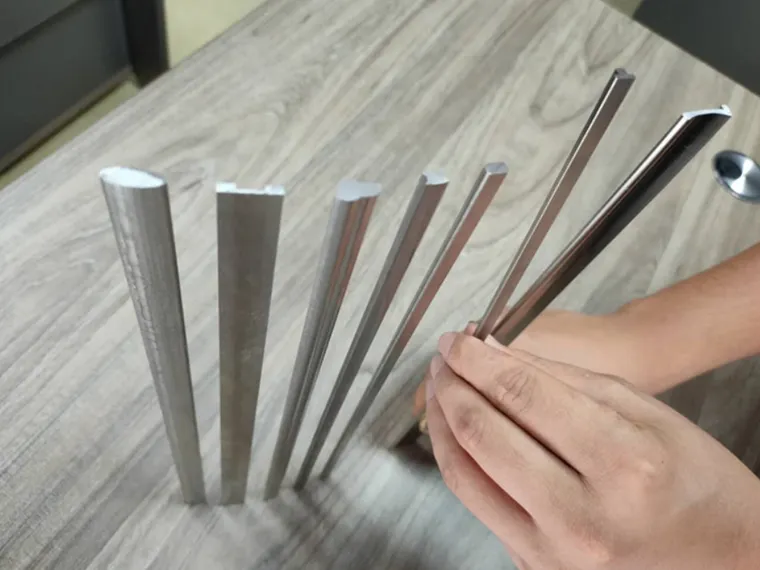

Common Wire Profiles
| Profile | Main Dimensions to Control | Typical Considerations |
| Flat Wire | Width, thickness, edge radius | Width spread and thickness consistency |
| Rectangular Wire | Width, thickness, corner radius | Squareness and corner formation |

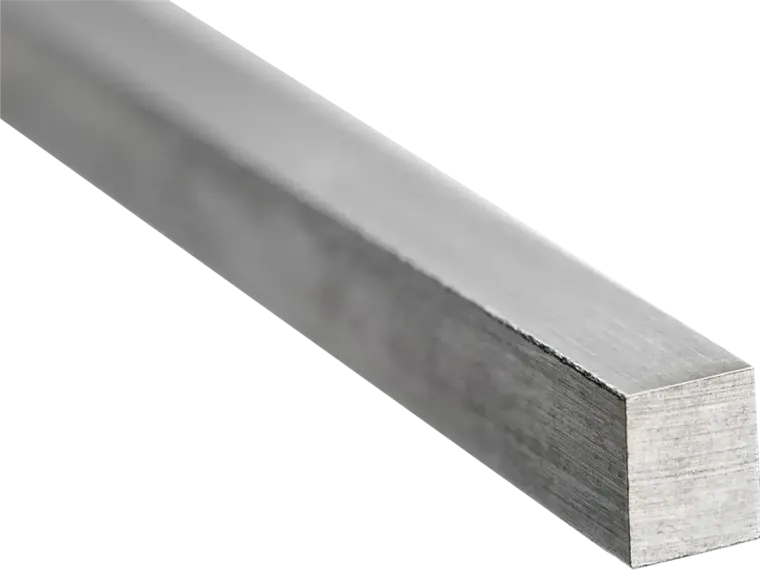

| Square Wire | Width, height, corner radius | Symmetry and diagonal dimensions |
| Half-Round Wire | Width, height, radius | Profile symmetry |
| Oval Wire | Major and minor axis | Shape consistency |

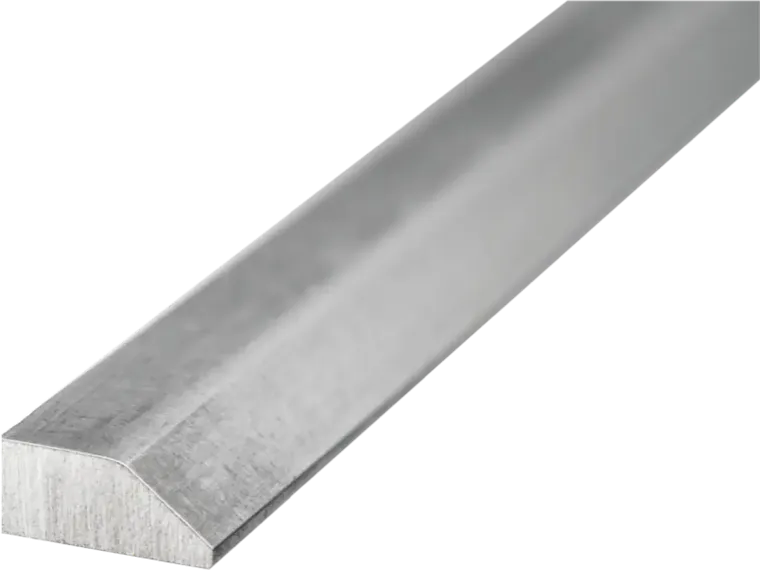

| Trapezoidal Wire | Top width, bottom width, height, angles | Roll or die geometry |
| Wedge Wire | Width, height, wedge angle | Profile accuracy and edge formation |

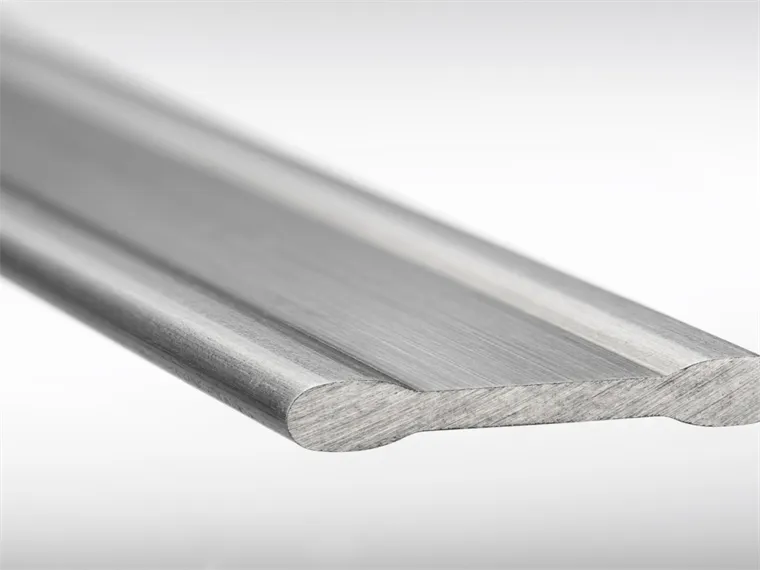

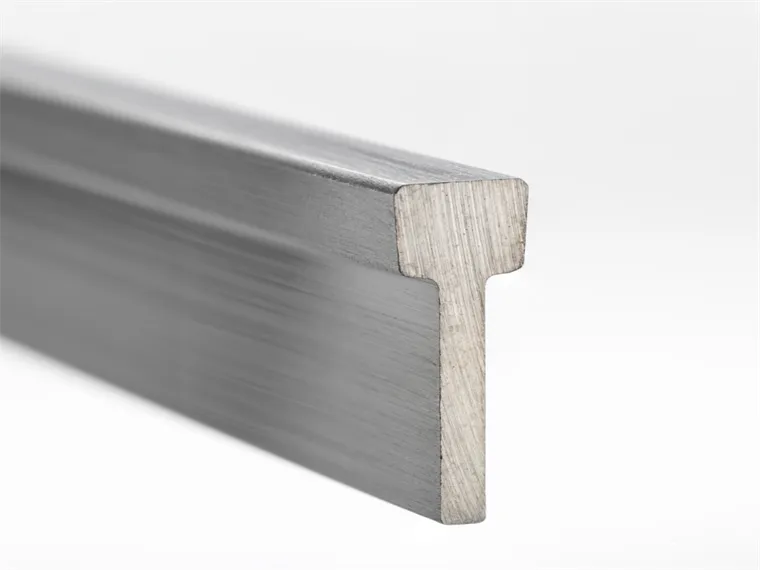

| Custom Profile | Drawing-defined dimensions | Dedicated tooling and multi-stage forming |
How Is Custom Shaped Wire Manufactured?
There is no single manufacturing route for all shaped wire.
Production normally starts with round wire, wire rod, or a pre-drawn section. The material is progressively reduced and formed until the required cross-section is reached.
A typical production route can include:
Round Wire / Rod → Pay-Off → Straightening → Pre-Drawing → Flat Rolling / Pre-Forming → Profile Rolling / Turks Head → Final Sizing → Online Measurement → Take-Up
Not every line requires every process. The actual machine configuration depends on the material and finished profile.
For example, a simple flat wire may only require controlled flattening and sizing. A rectangular or asymmetrical profile may require several rolling stands, a Turks head, or shaped drawing dies.
Why Multi-Stage Forming Is Used
A large change from round wire directly to a complex finished profile can produce excessive forming load, poor corner filling, dimensional instability, or surface defects.
Complex sections are therefore normally developed through intermediate profiles.
A typical sequence may be:
Round → Oval → Flat → Pre-Profile → Final Profile
The exact sequence is determined by material flow, total area reduction, profile geometry, and the condition of the incoming wire.
Shaped Wire Rolling vs. Shaped Wire Drawing
Rolling and drawing are both used for shaped wire production, but the material is formed differently.
In rolling, the cross-section is changed by compressive forces between rolls. In drawing, the wire is pulled through a die with a smaller or differently shaped opening.
Neither process is automatically better for every profile. The correct method depends on the material, cross-section, dimensional requirements, production volume, and required surface condition.
| Technical Factor | Profile Rolling | Profile Drawing |
| Forming Principle | Compression between rolls | Wire pulled through a shaped die |
| Main Tooling | Flat or profiled rolls | Shaped drawing dies |
| Typical Equipment | 2-roll mill, 4-roll mill, Turks head | Drawing machine, capstan, drawbench |
| Flat Wire | Well suited | Possible |
| Rectangular Wire | Well suited | Well suited |
| Square Wire | Multi-axis rolling commonly used | Shaped dies can be used |
| Complex Profiles | Dedicated profile rolls | Dedicated shaped dies |
| Dimensional Adjustment | Roll position can be adjusted | Usually requires die or tooling change |
| Continuous Production | Suitable | Suitable |
| Reduction Strategy | Single or multiple rolling stages | Successive drawing passes |
| Tool Contact | Localized roll contact | Die contact around the profile |
| Annealing Requirement | Depends on material and reduction | Depends on material and reduction |
In many production lines, rolling and drawing are not competing processes. They are used together.
Pre-drawing may first establish the required cross-sectional area. Rolling can then create the initial profile, followed by a Turks head or shaped die for final sizing.
Machines Used for Custom Shaped Wire Production
A shaped wire production line is normally configured around the finished profile rather than selected as one standard machine.
The number of forming stages, type of tooling, drive system, measurement equipment, and take-up system should be determined after the finished wire drawing has been reviewed.
Pay-Off
The pay-off supplies the incoming wire to the production line.
Spool, coil, stem, or other pay-off systems can be used depending on the incoming wire size, package type, coil weight, and required production speed.
Stable feeding is important because tension fluctuations at the beginning of the line can affect subsequent drawing or rolling stages.
Straightening Unit
Wire straightening removes curvature from the incoming material before it enters the forming section.
Straightening is particularly important where the following process requires accurate alignment through several rolling stands or profile dies.
Wire Drawing Machine
A drawing machine can be used before profile forming to reduce the incoming round wire to the required cross-sectional area.
Drawing may also be used during the final stages when a shaped drawing die is required to establish specific dimensions or profile features.

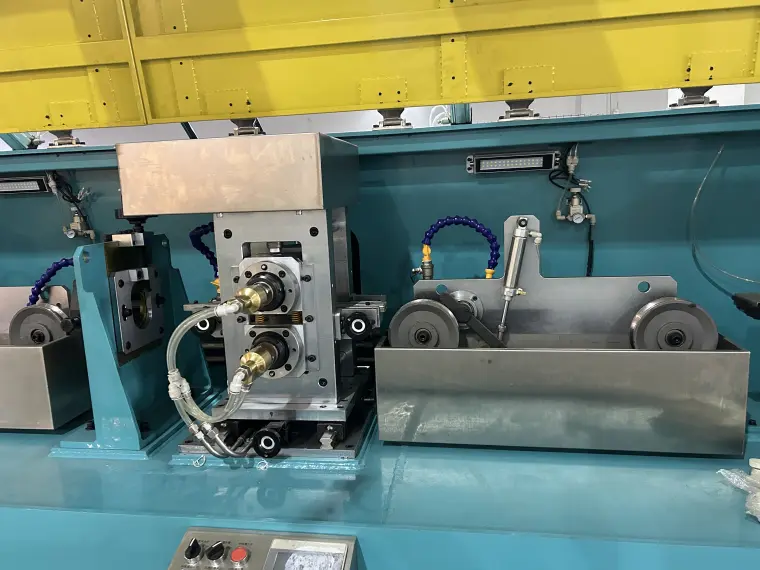

2-Roll Rolling Mill
A two-roll mill is commonly used for flattening round wire and controlling thickness.
As the rolls compress the wire, the material flows laterally and the width increases. The relationship between thickness reduction and width spread must therefore be considered when designing the rolling schedule.
4-Roll Profile Rolling Mill
A four-roll system acts on the wire from multiple directions.
This configuration is useful when width and thickness need to be controlled simultaneously or when the required cross-section cannot be formed effectively with only two rolls.
Square, rectangular, and other profile wires can be produced through successive four-roll forming stages.
Turks Head
A Turks head uses horizontal and vertical roll pairs to control the wire cross-section from four directions.
It can be used for forming, sizing, straightening, or finishing square, rectangular, and special profiles.
Depending on the line design, the Turks head may be driven or the wire may be pulled through the rolls by downstream equipment.
Online Measurement
Laser and optical measurement systems can be installed after critical forming stages or before take-up.
The measurement method depends on the finished profile. Simple flat wire may require width and thickness measurement, while complex profiles can require additional dimensional inspection.
Take-Up
The take-up system winds the finished shaped wire onto a spool or coil.
Take-up speed must follow the upstream forming process while maintaining suitable wire tension. Thin flat wire and complex profiles may require particularly careful tension control to avoid distortion during winding.
Key Technical Parameters in Shaped Wire Production
Shaped wire production line cannot be defined only by maximum wire diameter and maximum line speed.
The complete process must consider the relationship between starting material, area reduction, profile geometry, tooling, machine stiffness, wire tension, lubrication, measurement, and take-up.
| Process Parameter | Engineering Significance | Main Factors Affecting the Setting |
| Starting Wire Diameter | Defines the initial cross-sectional area | Finished profile and total reduction |
| Finished Cross-Section | Determines forming route and tooling | Customer drawing and application |
| Cross-Sectional Area Reduction | Determines the amount of deformation | Material condition and forming stage |
| Width-to-Thickness Ratio | Influences material spread during rolling | Final profile geometry |
| Number of Forming Stages | Controls progressive profile development | Total reduction and profile complexity |
| Reduction per Stage | Influences forming load and material flow | Material, hardness and tooling |
| Roll Diameter | Affects contact geometry and rolling conditions | Wire size and mill design |
| Roll Gap | Controls thickness or profile dimensions | Target size and material response |
| Roll Alignment | Affects symmetry and dimensional consistency | Machine setup and tooling condition |
| Die Geometry | Controls material flow during drawing | Profile shape and reduction |
| Drawing/Line Speed | Affects production rate and process stability | Material, profile and reduction schedule |
| Wire Tension | Stabilizes movement between forming units | Wire section and line configuration |
| Lubrication | Reduces friction, heat and tooling wear | Material and forming process |
| Annealing | Restores workability when required | Alloy and accumulated cold work |
| Online Measurement | Detects dimensional drift | Critical dimensions and tolerance |
| Take-Up Tension | Controls winding without deforming the profile | Finished section and spool size |
Machine Capacity vs. Process Capability
Maximum machine capacity should not be confused with the production capability for a specific shaped wire.
A rolling mill may have a high mechanical line speed, but the practical production speed for a particular profile depends on the material, starting section, reduction schedule, tooling, dimensional tolerance, lubrication, and required surface condition.
The same principle applies to wire size. A machine capable of accepting a particular maximum inlet diameter does not mean every profile can be produced from that diameter in one forming stage.
For custom shaped wire, the production route should be determined from the finished profile backward to the starting material.
Dimensional Control and Tolerances
Shaped wire requires more dimensional control than conventional round wire because several characteristics of the cross-section may need to remain within tolerance simultaneously.
For rectangular wire, the specification may include:
- Width
- Thickness
- Corner radius
- Squareness
- Edge condition
- Camber
- Twist
- Surface finish
For trapezoidal, wedge, grooved, or asymmetrical profiles, additional angles, radii, depths, and datum dimensions may need to be controlled.
There is no universal tolerance that applies to all shaped wire.
Achievable tolerance depends on the material, profile dimensions, width-to-thickness ratio, tooling accuracy, machine stiffness, production speed, measurement method, and number of forming stages.
Specialized precision profile-wire manufacturing can reach tolerances in the micron range on selected critical dimensions, but such values should not be treated as standard capability for every material and profile.
Example of a Rectangular Wire Specification
| Drawing Requirement | Example Value |
| Material | Stainless Steel 304 |
| Starting Wire | Ø3.00 mm |
| Finished Profile | Rectangular |
| Finished Width | 2.50 mm |
| Finished Thickness | 0.80 mm |
| Corner Radius | R0.15 mm |
| Width Tolerance | ±0.02 mm |
| Thickness Tolerance | ±0.01 mm |
| Edge Condition | Rounded |
| Finished Supply | Coil |
The values above are an example of the information normally required to evaluate a shaped wire project. They do not represent standard machine capability.
Material Behavior During Shaped Wire Forming
The same wire profile can require a different production route when the material changes.
Material strength, ductility, work-hardening behavior, surface sensitivity, friction, and incoming temper all influence the number of forming stages and the required tooling.
| Material | Typical Forming Considerations |
| Low Carbon Steel | Good formability and suitable for many rolled profiles |
| High Carbon Steel | Higher strength and work hardening require closer control of reduction |
| Stainless Steel | Work hardening, tooling condition and lubrication are important |
| Copper | Good formability; dimensional and surface control are important for electrical applications |
| Copper Alloys | Mechanical behavior varies according to alloy and temper |
| Aluminum | Lower forming loads but surface damage requires attention |
| Nickel Alloys | Higher forming loads and work hardening can affect stage design |
| Titanium | Material condition, tooling and friction require careful process selection |
A production line may be mechanically capable of processing several materials, but this does not mean the same rolls, dies, speed, lubrication, and reduction schedule can be used for every material.
Reduction and Forming Schedule
The forming schedule determines how the starting wire is progressively converted into the finished cross-section.
For a simple flat profile, the main consideration may be the relationship between thickness reduction and lateral width spread.
For rectangular, trapezoidal, wedge, or asymmetrical profiles, material must be distributed into specific areas of the cross-section. This normally requires intermediate shapes rather than one large final reduction.
A typical engineering sequence is:
Starting Section → Calculate Required Area → Define Intermediate Profiles → Determine Reduction per Stage → Design Tooling → Verify Final Sizing
When total cold deformation becomes too high for the material, intermediate heat treatment may be required before further forming. Whether annealing is necessary depends on the alloy, incoming material condition, accumulated reduction, and required final properties.
Profile Design and Tooling
Tooling design is one of the most important parts of custom shaped wire production.
The finished profile cannot be considered independently from the intermediate stages used to produce it.
For simple flat wire, conventional rolls may be sufficient. Square and rectangular profiles may require horizontal and vertical control. Asymmetrical, grooved, wedge, or complex profiles normally require dedicated profile rolls, shaped drawing dies, or a combination of both.
Tooling development normally considers:
Incoming Cross-Section → Intermediate Profiles → Material Flow → Corner Formation → Final Dimensions → Springback → Tool Wear → Measurement Method
Material Flow
Metal does not automatically flow into every part of a complex roll or die cavity.
Tooling must guide material toward the areas required to form corners, ribs, grooves, or other features.
Insufficient material flow can result in incomplete profile filling, while excessive localized deformation can increase forming load or create surface defects.
Corner Formation
Sharp corners are more difficult to produce than generous radii.
The required corner radius should therefore be defined on the customer’s profile drawing rather than described only as “square” or “rectangular.”
Springback
After the forming load is removed, elastic recovery can change the final dimensions of the wire.
The effect depends on material properties, profile geometry, reduction, and tooling design and should be considered when developing the final sizing stages.
Tool Wear
Roll and die wear can gradually change the finished dimensions during continuous production.
Tool material, surface condition, lubrication, alignment, and maintenance therefore affect both tooling life and dimensional consistency.
Common Custom Shaped Wire Applications
Custom shaped wire is used where a round cross-section does not provide the required mechanical, electrical, assembly, or space-saving function.
| Industry | Typical Profiles or Components |
| Automotive | Clips, retaining elements and precision mechanical components |
| Electrical & Electronics | Contacts, conductors and terminals |
| Motors & Transformers | Flat and rectangular conductor wire |
| Filtration | Wedge wire and screen profiles |
| Medical Devices | Precision shaped wire components |
| Springs | Flat, rectangular and custom spring profiles |
| Industrial Equipment | Guides, locking elements and wear components |
| Precision Mechanics | Near-net-shape wire components |
One advantage of shaped wire is that the cross-section can be produced closer to the geometry of the finished component. This can reduce subsequent machining, grinding, or material removal in applications where a near-net profile is useful.
How to Select a Shaped Wire Production Process
Machine selection should start with the finished wire drawing, not with the number of rolling stands or the maximum machine speed.
The following information is normally required before the production route can be evaluated.
| Required Information | Example |
| Material Grade | SUS304 |
| Incoming Wire Size | Ø3.00 mm |
| Finished Profile | Rectangular |
| Finished Size | 2.50 × 0.80 mm |
| Corner Radius | R0.15 mm |
| Critical Tolerance | Thickness ±0.01 mm |
| Surface Requirement | Specified by customer |
| Required Production Speed | 50 m/min |
| Coil Weight | 100 kg |
| Finished Packaging | Spool / Coil |
| Profile Drawing | PDF / DWG / STEP |
Based on this information, the production route can be evaluated for:
Pre-Drawing → Rolling Stages → Profile Forming → Turks Head → Final Sizing → Measurement → Take-Up
For complex profiles, a dimensional drawing is particularly important. It defines critical dimensions, corner radii, grooves, angles, datums, and tolerances more accurately than a photograph or general description.
Frequently Asked Questions
What is the difference between shaped wire and flat wire?
Flat wire is one type of shaped wire. Shaped wire is a broader term covering flat, rectangular, square, oval, trapezoidal, wedge, half-round, grooved, and other custom cross-sections.
Can round wire be formed directly into a shaped profile?
It depends on the material, total reduction, and profile geometry. Simple profiles with moderate deformation may be produced with relatively few stages. Complex profiles or large changes in cross-sectional geometry normally require several intermediate forming stages.
What is the difference between a rolling mill and a Turks head?
A conventional two-roll mill primarily applies force from two opposing directions. A Turks head uses horizontal and vertical roll pairs to control the wire from four directions, making it useful for square, rectangular, and special profile forming or final sizing.
Is custom shaped wire always produced by rolling?
No. Shaped wire can be produced by rolling, drawing, or a combination of both processes. The correct route depends on the material, starting section, finished geometry, tolerances, and surface requirements.
When are shaped drawing dies used?
Shaped drawing dies can be used when the wire needs to be pulled through a controlled final cross-section or when particular profile features are better produced through drawing than rolling. Several shaped dies may be required for progressive reduction.
Does shaped wire production require annealing?
Not always. Annealing may be required when accumulated cold work makes further deformation difficult or when a particular material condition is required. The requirement depends on the alloy, reduction schedule, and finished wire properties.
How many rolling stands are required?
There is no fixed number. A simple flat profile may require relatively few forming stages, while a complex or asymmetrical profile can require several intermediate stages before final sizing.
What determines shaped wire tolerance?
Material properties, profile size, width-to-thickness ratio, tooling accuracy, machine stiffness, roll or die alignment, production speed, thermal conditions, and measurement method can all affect dimensional tolerance.
Can one production line make different wire profiles?
A flexible production line can be configured for different profiles, but rolls, drawing dies, guides, measurement settings, and process parameters normally need to be changed for each product.
Can stainless steel, copper, and titanium be processed on the same line?
A machine platform may be capable of processing different materials within its mechanical range. However, tooling, reduction schedule, speed, lubrication, and other process settings must be selected according to the material.
Why is the finished profile drawing important?
The drawing defines the dimensions that actually need to be controlled. For complex wire, width and thickness alone are not sufficient. Corner radii, angles, grooves, edge geometry, datums, and individual tolerances may determine the tooling and production route.
What information is required for a new custom shaped wire project?
Provide the material grade, incoming wire size, finished cross-sectional drawing, critical tolerances, surface requirements, required production speed, coil weight, and finished packaging. An existing wire sample or current production process can also be useful when evaluating the line.
Have a Custom Wire Profile?
Send us your finished wire drawing and production requirements. We can review the material, starting wire size, profile geometry, tolerances, and required output to determine a suitable drawing, rolling, or Turks head process.
Please provide:
Material Grade · Inlet Wire Size · Finished Profile Drawing · Critical Tolerances · Required Speed · Coil Weight · Finished Packaging
Send Your Wire Drawing
