Copper PV Ribbon Production Lines: Process Design, Technical Parameters and Quality Control

Copper PV ribbon is a precision flat conductor used to interconnect solar cells and transfer electrical current to junction boxes and busbars. Its performance depends on more than copper conductivity. Ribbon thickness, width, flatness, yield strength, solder coating, surface cleanliness and package quality all affect module assembly and long-term reliability.

A complete PV ribbon production line normally integrates copper pay-off, wire drawing or rolling, annealing, cleaning, tin coating, cooling, straightening, inspection and take-up. Each section must be matched to the finished ribbon specification and required production speed.

What Is a Copper PV Ribbon Production Line?

A PV ribbon line converts round copper wire or copper rod into flat, solderable ribbon for photovoltaic module manufacturing.

Production stage	Main function	Main quality variables
Copper pay-off	Supplies stable raw material	Entry tension, surface condition and coil stability
Drawing or rolling	Reduces thickness and forms the flat profile	Width, thickness, flatness and edge condition
Annealing	Restores ductility after cold reduction	Yield strength, elongation and residual stress
Cleaning	Removes oil, oxides and contaminants	Surface cleanliness and solderability
Tin coating	Applies solderable protective coating	Coating thickness, adhesion and surface uniformity
Cooling	Stabilizes coating and ribbon temperature	Cooling rate and coating integrity
Straightening	Removes curvature and twist	Flatness, camber and orientation
Inspection	Verifies product quality	Dimensions, coating, conductivity and defects

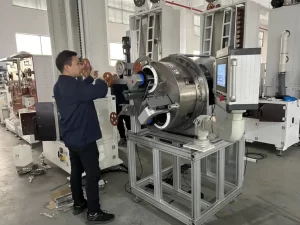

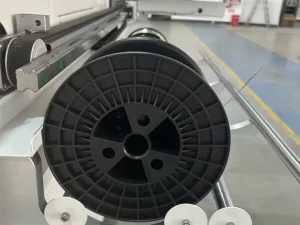

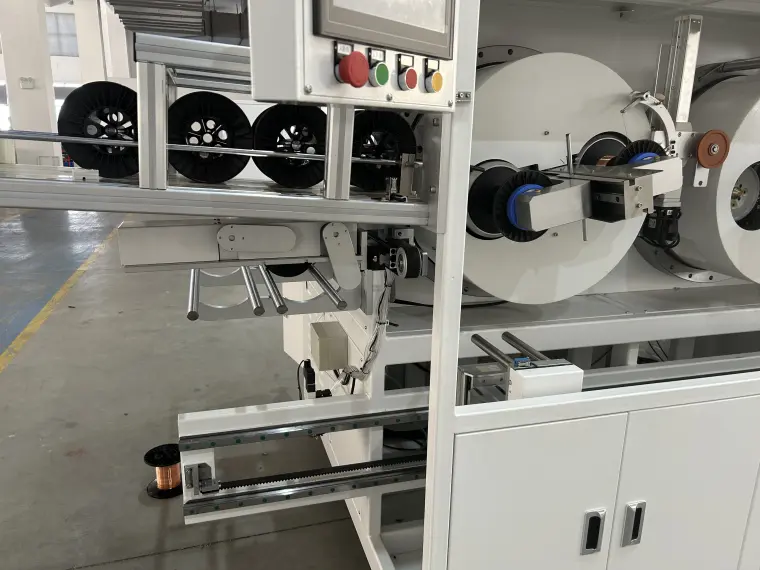

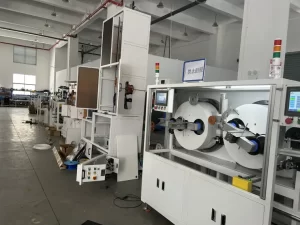

Take-up	Forms the finished package	Winding tension, traverse and package geometry

The process sequence may be adjusted according to whether the customer produces standard PV ribbon, multi-busbar ribbon, smart wire, busbar or custom flat copper products.

PV Ribbon and Busbar Size Ranges

The final line design should start with the product range rather than a standard machine model.

Product type	Typical thickness	Typical width	Main application
Standard PV ribbon	0.07–0.20 mm	1–3 mm	Cell interconnection
Fine-cell ribbon	0.10–0.30 mm	0.60–2.00 mm	High-density cell layouts
Multi-busbar ribbon	0.15–0.35 mm	1–3 mm	MBB and SMBB modules
PV busbar	0.10–0.50 mm	3–8 mm	Current collection and module connection
Custom flat copper ribbon	Project-specific	Project-specific	Special cell and electrical designs

Typical coating thickness may range from approximately 10–40 μm, depending on solder type, application and customer specification.

The final dimensional tolerance should be defined separately for thickness, width, flatness, camber, coating thickness and edge condition.

Copper Material Selection for PV Ribbon

Copper quality directly affects electrical conductivity, rolling behavior, annealing response and soldering performance.

Copper material	Typical characteristics	Selection considerations
Oxygen-free copper	High conductivity and low oxygen content	Suitable for high-performance conductive ribbon
Electrolytic copper	Good conductivity and broad availability	Common for standard PV ribbon
Copper alloy	Higher strength than pure copper	Used when additional mechanical strength is required
Copper-clad aluminium	Lower weight and material cost	Requires evaluation of conductivity and joining method
Silver-plated copper	Improved surface performance	Used for specialty electrical applications

For high-conductivity PV ribbon, oxygen-free copper is commonly selected. The customer should confirm:

• Copper purity
• Electrical conductivity
• Tensile strength
• Elongation
• Surface condition
• Incoming wire diameter
• Coil weight and packaging

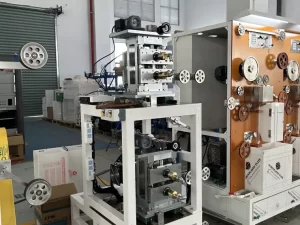

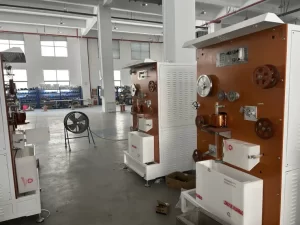

Round Wire to Flat Ribbon Forming

Round copper wire can be converted into flat ribbon through drawing, rolling or a combined drawing-and-rolling process.

Forming method	Main advantage	Main limitation
Flat rolling	High control of width and thickness	Requires stable entry wire and roll alignment
Drawing through shaped dies	Good dimensional control for selected profiles	Die wear and lubrication must be controlled
Drawing plus rolling	Flexible reduction route	More complex line synchronization
Multi-pass rolling	Suitable for precise flat dimensions	Requires multiple stands and thermal management

The forming section must control:

• Thickness reduction
• Width expansion
• Roll gap
• Roll parallelism
• Edge geometry
• Surface roughness
• Flatness and camber
• Final ribbon orientation

For high-volume production, the stable operating speed is more important than the short-term maximum speed.

Technical Parameters for PV Ribbon Rolling and Drawing

Parameter	Typical engineering range
Incoming round wire diameter	Approximately 1.0–3.5 mm
Finished thickness	0.07–0.50 mm
Finished width	0.6–8.0 mm
Production speed	Approximately 100–500 m/min
Number of forming passes	2–8 passes, depending on reduction
Roll diameter	Project-specific, commonly selected for stiffness and surface quality
Thickness control	Mechanical roll-gap setting with closed-loop correction
Width control	Roll geometry and guide alignment
Flatness control	Roll alignment, tension and straightening
Drive system	AC vector drive or servo-assisted drive
Online measurement	Laser thickness, width and flatness measurement
Finished output	Spool, coil or cut-to-length ribbon

The final parameters depend on copper grade, starting wire size, reduction schedule, product tolerance and line layout.

Annealing Requirements for Copper PV Ribbon

Cold forming increases hardness and reduces elongation. Annealing restores flexibility and improves the ribbon’s ability to withstand cell interconnection and soldering.

Annealing parameter	Typical design consideration
Heating method	Resistance, tube furnace or inline electrical heating
Temperature range	Approximately 350–700°C, depending on copper condition
Heating zones	2–12 independently controlled zones
Temperature accuracy	Typically ±2–5°C at the control point
Atmosphere	Air, nitrogen or low-oxygen protective gas
Cooling method	Air, water jacket or controlled liquid cooling
Line speed	Synchronized with forming and coating sections
Main quality targets	Yield strength, elongation, conductivity and surface condition

For coated ribbon, the annealing process must be placed and controlled so that it does not damage the solder coating.

Tin Coating and Solderability Control

Tin coating improves solderability and protects the copper surface from oxidation. The coating system must control both thickness and adhesion.

Coating parameter	Typical value or requirement
Coating materials	Sn, SnPb, SnAg, SnCuAg, SnBi and related alloys
Coating thickness	Approximately 10–40 μm
Typical busbar coating	Around 20 μm
Coating tolerance	Project-specific; special systems may target ±3 μm
Surface condition	Continuous, smooth and free from pinholes
Main defects	Tin beads, slag, bare spots, cracks and uneven edges
Flux options	Rosin, water-soluble, no-clean, organic-acid or activated flux
Cooling requirement	Stabilize coating before winding
Adhesion test	Bend, peel or soldering-process verification

The coating alloy and flux must be selected according to the customer’s soldering temperature, residue limits, environmental requirements and module assembly process.

PV Ribbon Quality Control and Inspection

A production line should include online monitoring and offline laboratory verification.

Quality item	Typical inspection method
Thickness	Laser gauge or calibrated micrometer
Width	Optical or contact measurement
Flatness	Profile measurement and reference surface test
Camber	Straightedge or optical inspection
Surface condition	Camera, microscope or visual inspection
Coating thickness	XRF, cross-section or coating gauge
Coating adhesion	Bend or soldering test
Electrical conductivity	Four-point or conductivity meter
Yield strength	Tensile testing
Elongation	Tensile testing
Solderability	Wetting or solder-joint evaluation
Package quality	Unwinding and layer inspection

Online data should be linked to production recipes, alarm history and material batches.

Common PV Ribbon Defects and Root Causes

Defect	Possible cause	Corrective direction
Thickness variation	Roll-gap instability or die wear	Check forming stand alignment and feedback
Width variation	Incorrect roll geometry or guide offset	Recalibrate guides and width control
Excessive camber	Uneven reduction or tension	Adjust roll parallelism and tension
Tin beads	Excess coating or unstable wiping	Optimize coating flow and wiping system
Pinholes in coating	Poor surface cleaning or gas entrapment	Improve cleaning and coating conditions
Bare copper areas	Incomplete wetting or contamination	Check flux, surface preparation and bath condition
Poor solderability	Incorrect alloy or oxide contamination	Review coating alloy and atmosphere
Ribbon breaks	Excessive hardness or tension	Adjust annealing and line acceleration
Loose spool package	Unstable take-up tension	Calibrate torque and traverse control

PV Ribbon Production Speed and Line Capacity

The line capacity is determined by more than the nominal speed.

Capacity factor	Effect on output
Ribbon thickness	Thinner ribbon may require tighter thermal and coating control
Ribbon width	Wider ribbon increases coating and cooling load
Coating thickness	Higher coating volume may reduce stable speed
Annealing length	Longer thermal residence time may limit line speed
Changeover time	Directly affects daily production
Scrap rate	Determines usable output rather than theoretical output
Take-up package size	Affects stoppage frequency
Automation level	Influences labour and line availability

A production proposal should state both nominal speed and expected stable production speed under normal quality conditions.

Factory Utilities and Installation Requirements

Customers should prepare utilities before installation.

Utility or facility	Typical requirement
Electrical power	Determined by rolling, heating, coating and cooling load
Cooling water	Required for rolls, furnace, coating and heat exchangers
Compressed air	Used for valves, actuators and cleaning systems
Process gas	Nitrogen, argon or mixed protective atmosphere
Exhaust system	Required for flux vapour and coating fumes
Floor and foundation	Must support vibration and reel loads
Workshop height	Determined by pay-off, take-up and lifting equipment
Drainage	Required for cleaning and cooling systems
Environmental controls	Required for flux, wastewater and metal residues

The factory layout should also provide safe access for roll changes, die replacement, coating-bath maintenance and finished-reel handling.

PV Ribbon Line Acceptance Tests

A complete line should be accepted using the customer’s actual raw material and product specification.

Acceptance test	Main evaluation
No-load running test	Drive, control and safety functions
Raw-wire threading test	Wire path and guide alignment
Forming test	Thickness, width and flatness
Annealing test	Mechanical properties and temperature uniformity
Coating test	Thickness, adhesion and surface quality
High-speed test	Stable operation at target production speed
Continuous production test	Long-run stability and scrap rate
Take-up test	Package density and unwinding behavior
Emergency-stop test	Safe and controlled line shutdown
Documentation review	Recipes, inspection records and manuals

The acceptance standard should be agreed before manufacturing and should include measurable dimensional, mechanical, electrical and coating requirements.

How to Specify a Copper PV Ribbon Production Line

A technical inquiry should include:

• Copper grade and purity
• Incoming wire diameter
• Finished ribbon thickness and width
• Thickness and width tolerance
• Required yield strength and elongation
• Electrical conductivity target
• Tin alloy and coating thickness
• Production speed
• Daily or annual output
• Spool or coil format
• Required automation level
• Available factory utilities
• Environmental and flux requirements
• Inspection and acceptance standards

A clear product specification allows the forming, annealing, coating, cooling and take-up sections to be designed as one coordinated system.

Turnkey Copper PV Ribbon roduction Solutions

A complete PV ribbon line should be evaluated by finished-product performance rather than by the number of machines included.

Sky Bluer can develop integrated production solutions covering:

• Copper pay-off
• Wire drawing and rolling
• Annealing
• Cleaning
• Tin coating
• Cooling
• Straightening
• Online inspection
• Cut-to-length processing
• Take-up and packaging
• Factory layout and commissioning

The final line configuration is determined by copper material, ribbon dimensions, coating specification, production speed, quality targets and factory conditions.
