Dry wire drawing is one of the principal methods used to reduce the diameter of steel rod and wire. The process pulls the material through a series of progressively smaller dies while dry drawing powder provides lubrication between the wire and each die.
A dry wire drawing machine is commonly used for low-carbon steel wire, high-carbon steel wire, spring wire, bead wire, welding wire, rope wire, fastener wire, stainless steel wire and prestressing wire. It is particularly suitable for rod breakdown and intermediate drawing where the process requires substantial diameter reduction, high pulling force and continuous industrial production.
Selecting a machine, however, is not simply a matter of matching an inlet diameter to an outlet diameter. A reliable production line must be designed around the wire grade, tensile strength, surface condition, total reduction, reduction per pass, drawing speed, cooling capacity and required finished-wire properties.
This guide explains the most important technical factors that buyers should evaluate when specifying a dry wire drawing machine.
How Dry Wire Drawing Works
The drawing process begins when prepared rod or wire enters the first die. The die opening is smaller than the inlet wire, so the cross-sectional area decreases as the wire is pulled through it. The wire then wraps around a driven drawing block, which provides the pulling force required for that pass.

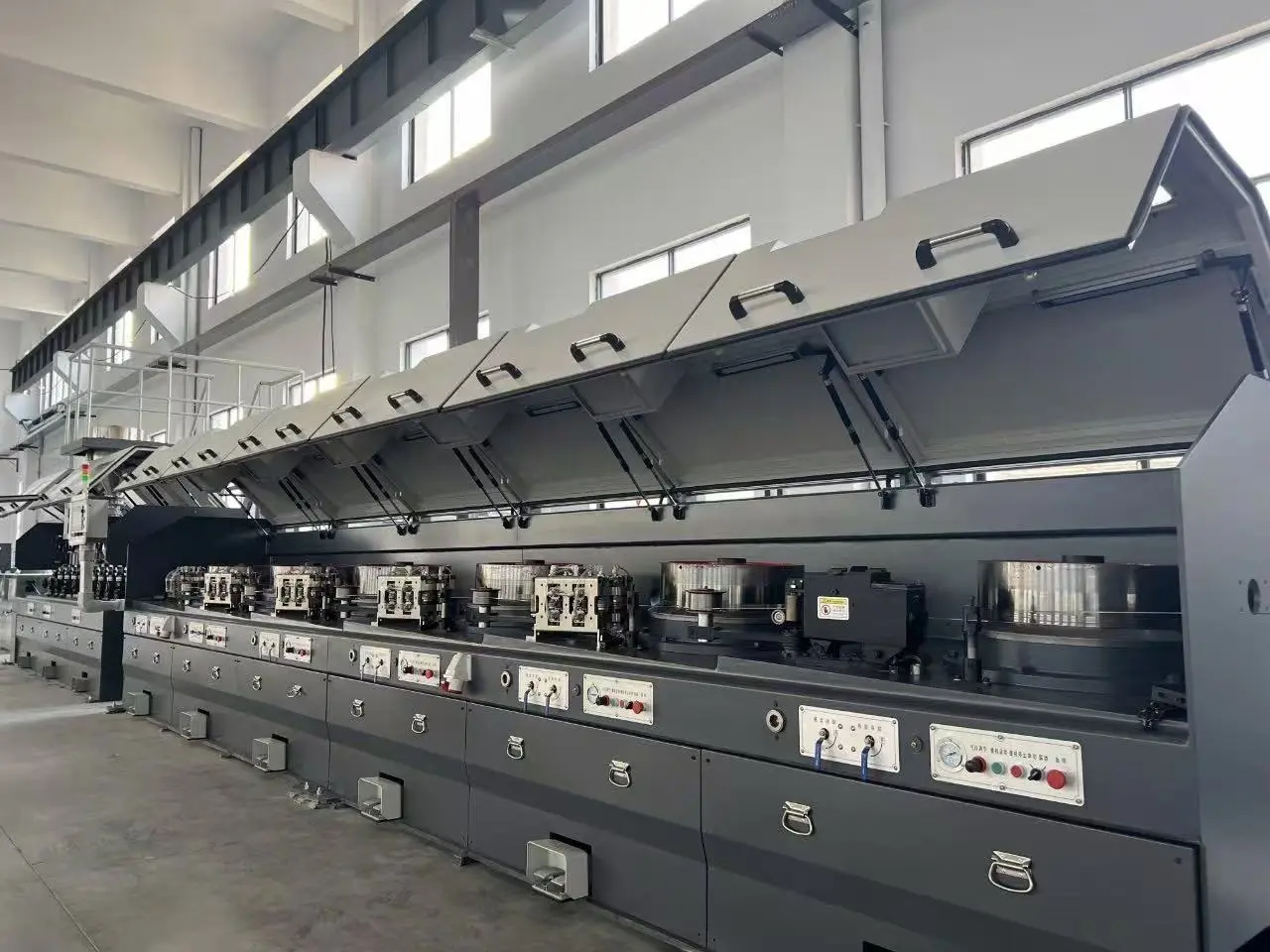

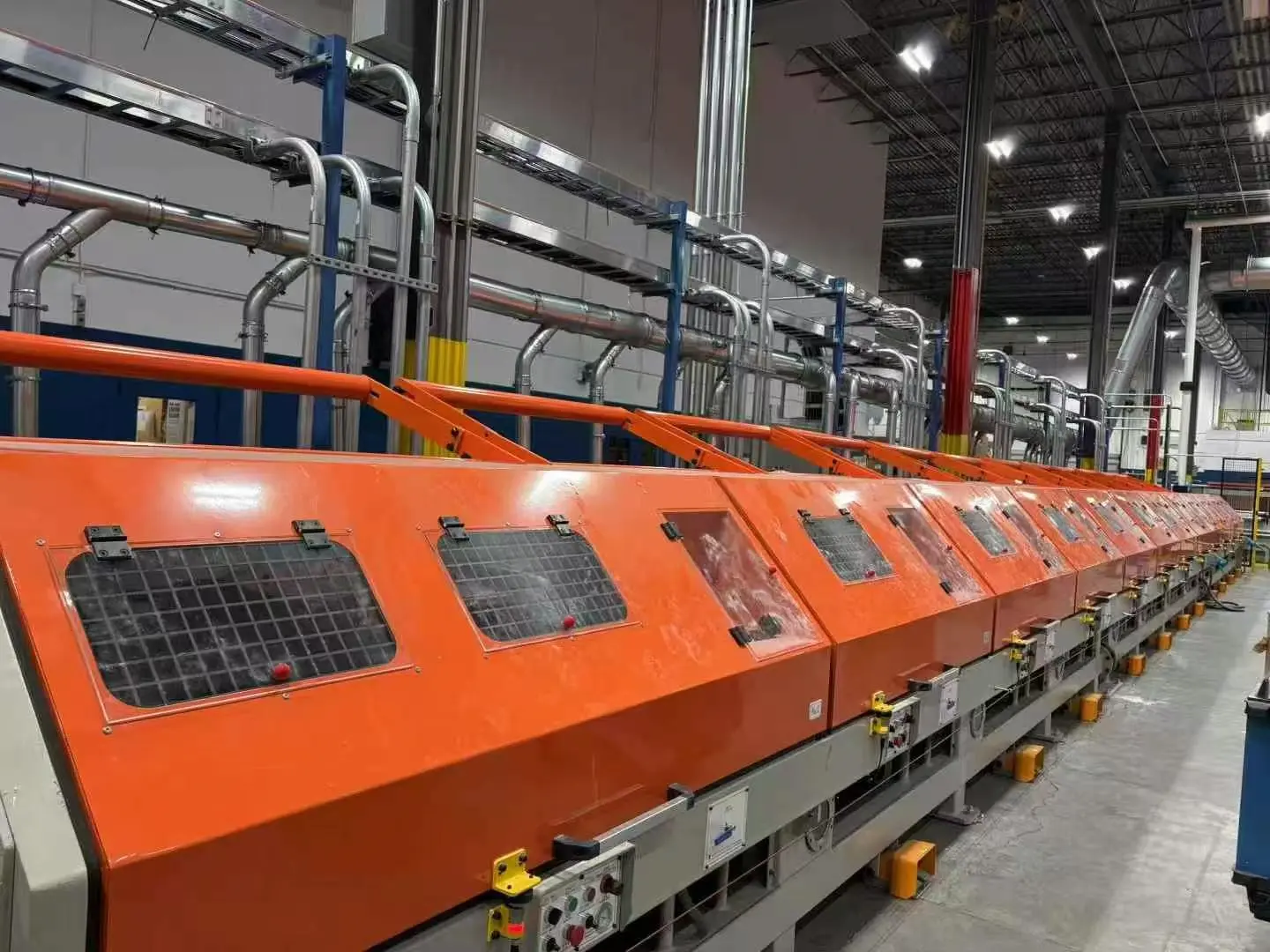

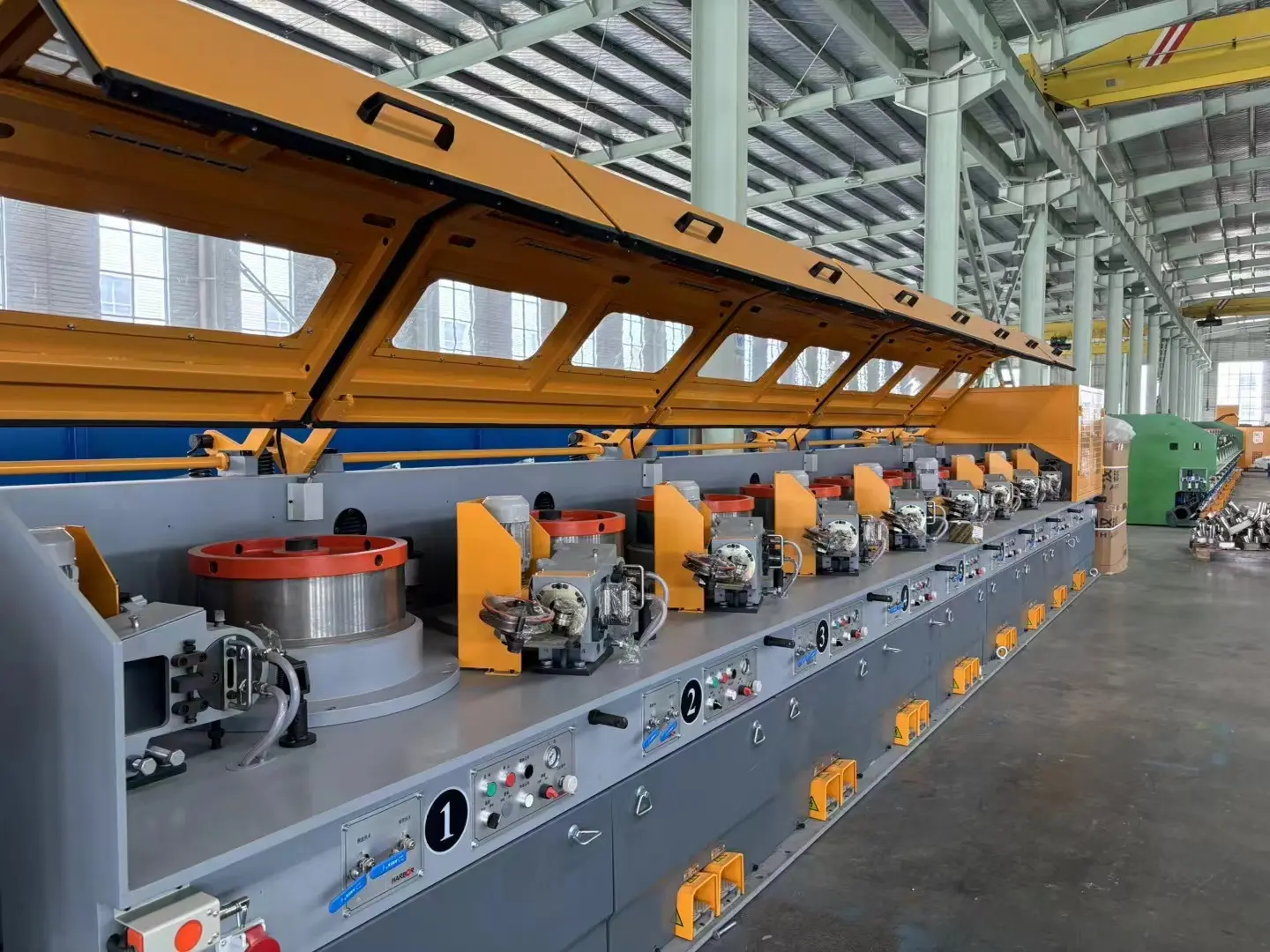

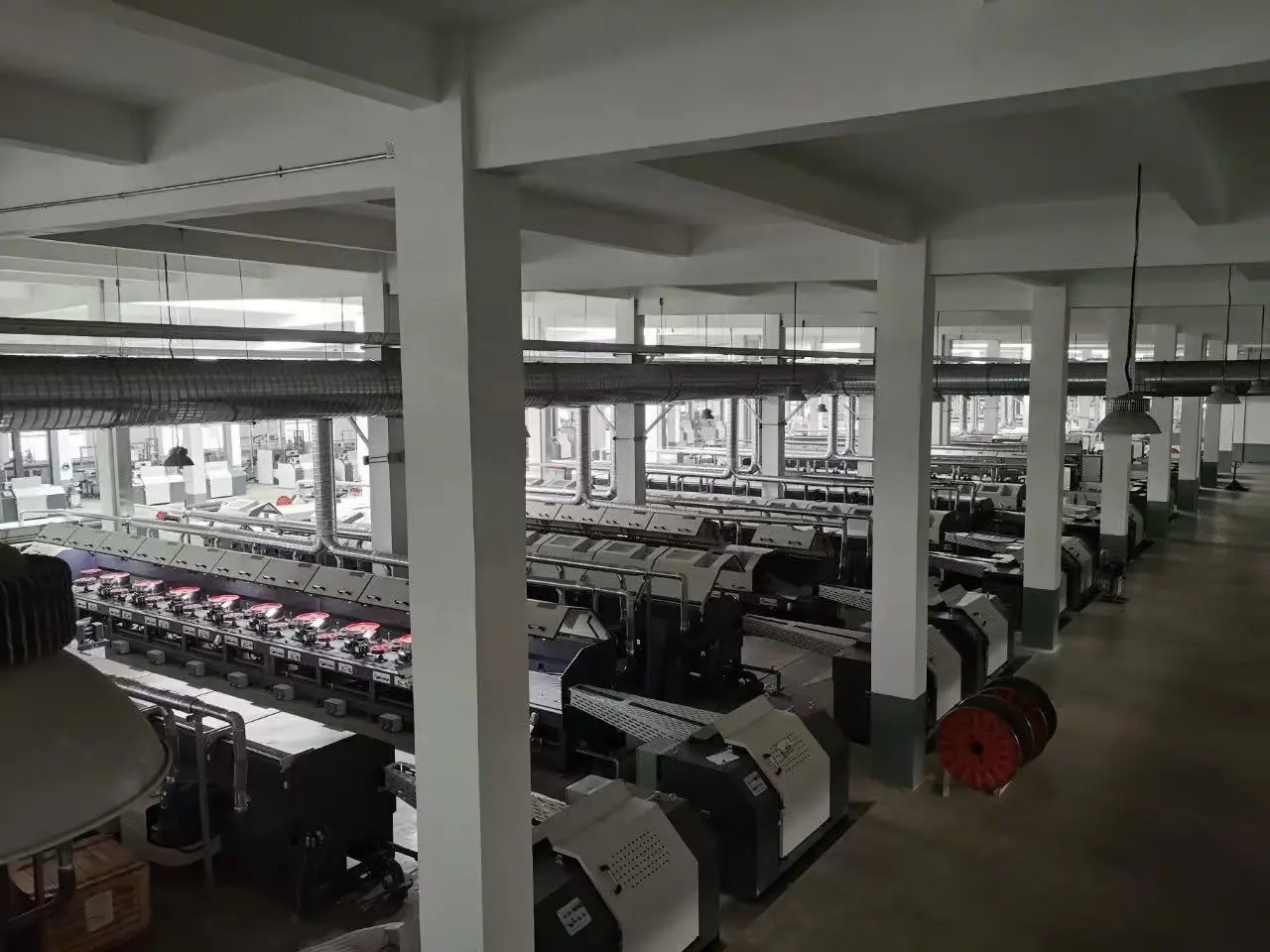

A multi-block line repeats this process through several dies. Each successive die reduces the diameter until the required finished size is reached.
For round wire, the area reduction in one pass can be calculated as:
Area reduction (%) = [1 − (d₂ ÷ d₁)²] × 100
In this formula, d₁ is the inlet diameter before the drawing pass and d₂ is the outlet diameter after the pass.
For example, reducing wire from 5.50 mm to 5.00 mm produces an area reduction of approximately 17.4%. Reducing 5.50 mm rod directly to a much smaller diameter requires several passes because attempting the entire reduction in one pass would create excessive drawing force, temperature and material deformation.
The permissible reduction per pass is not the same for every wire. It depends on the chemical composition, metallurgical condition, tensile strength, ductility, die geometry, lubricant and cooling efficiency.
High-carbon wire normally requires more careful control than low-carbon wire because work hardening increases its strength throughout the drawing process. Stainless steel also requires suitable die materials, effective lubrication and sufficient cooling because of its work-hardening characteristics.
A properly designed drawing schedule distributes the total reduction across the available blocks. This keeps the drawing force within the capacity of the motors, dies and wire while producing the required diameter and mechanical properties.
Why Drawing Speed Cannot Be Evaluated Separately
Maximum drawing speed is frequently treated as the most important specification, but catalogue speed alone does not represent actual production performance.
The mechanically available line speed may be much higher than the sustainable speed for a particular product. Actual production speed is influenced by wire grade, inlet diameter, outlet diameter, surface preparation, lubricant, die condition, cooling-water temperature and finished-wire quality requirements.
Higher speed increases heat generation in both the dies and drawing blocks. If the heat cannot be removed effectively, lubricant performance deteriorates and die wear increases. Excessive wire temperature may also affect tensile strength, ductility and surface quality.
For this reason, a supplier should distinguish between maximum mechanical speed and guaranteed production speed. A meaningful production-speed guarantee must be connected to a defined wire grade, diameter route and acceptance standard.

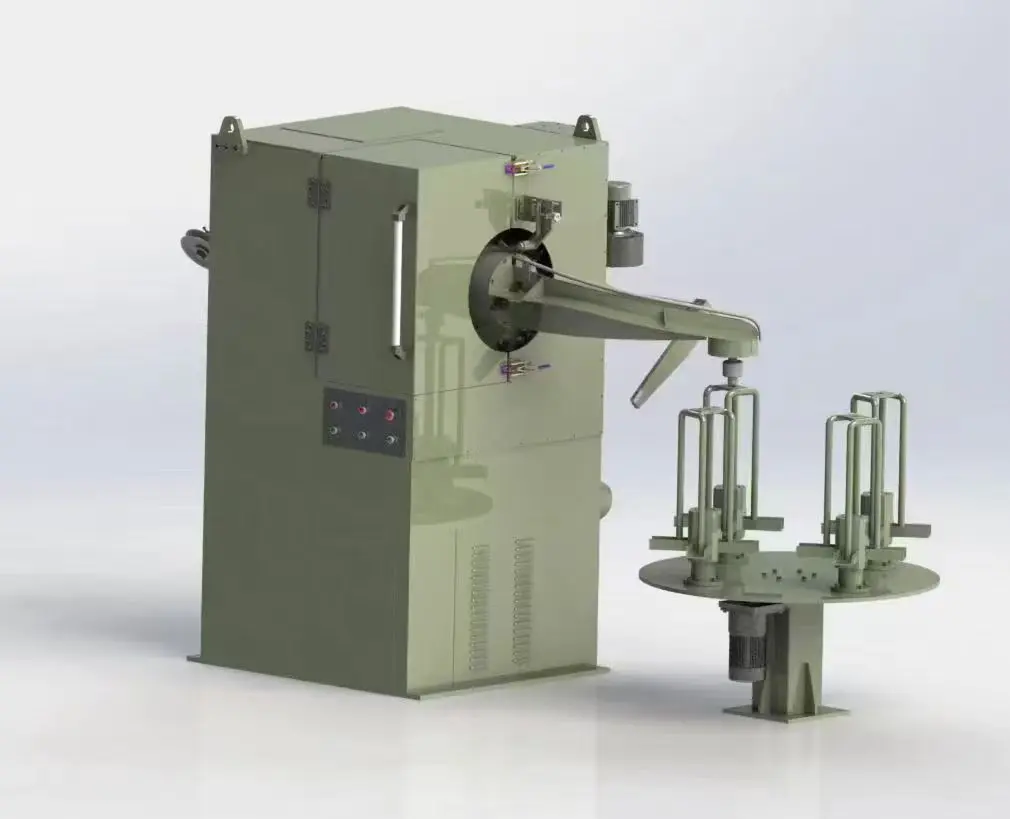

The payoff and take-up equipment must also support the intended line speed. A high-speed drawing section cannot operate consistently if the incoming coil causes unstable tension or the take-up system cannot collect the finished wire at the required rate.
Reference Technical Specifications
The model number normally refers to the nominal diameter of the drawing block or capstan. Larger drawing blocks are generally used for larger wire, higher torque and heavier drawing loads.
The following figures represent reference configuration ranges. Motor power is shown per drawing block. Final specifications must be confirmed through process calculations.
| Block model | Maximum inlet tensile strength | Number of blocks | Inlet diameter | Outlet diameter | Reference maximum speed | Motor power per block |
| 200 mm | ≤800 MPa | Up to 14 | 0.30–1.50 mm | 0.08–0.40 mm | 20–30 m/s | 1.1–4.0 kW |
| 250 mm | ≤800 MPa | Up to 14 | 0.90–2.00 mm | 0.25–0.50 mm | 20–30 m/s | 3.0–7.5 kW |
| 300 mm | ≤1,350 MPa | Up to 14 | 1.50–2.80 mm | 0.40–0.80 mm | 20–30 m/s | 7.5–18.5 kW |
| 350 mm | ≤1,350 MPa | Up to 14 | 1.80–3.50 mm | 0.50–1.20 mm | 20–30 m/s | 11–22 kW |
| 400 mm | ≤1,350 MPa | Up to 12 | 2.20–4.20 mm | 0.60–1.50 mm | 20–30 m/s | 11–30 kW |
| 450 mm | ≤1,350 MPa | Up to 12 | 3.20–4.80 mm | 1.00–2.00 mm | 20–30 m/s | 15–37 kW |
| 500 mm | ≤1,350 MPa | Up to 12 | 4.00–5.00 mm | 1.20–2.50 mm | 20–30 m/s | 22–37 kW |
| 560 mm | ≤1,350 MPa | Up to 13 | 5.50–6.50 mm | 1.35–3.00 mm | 20–30 m/s | 22–45 kW |
| 600 mm | ≤1,350 MPa | Up to 12 | 6.50–8.00 mm | 2.00–3.50 mm | Up to 15 m/s | 30–75 kW |
| 700 mm | ≤1,350 MPa | Up to 10 | 6.15–8.00 mm | 2.20–4.00 mm | Up to 12 m/s | 45–90 kW |
| 800 mm | ≤1,350 MPa | Up to 9 | 6.50–12.50 mm | 2.50–5.00 mm | Up to 10 m/s | 55–110 kW |
| 900 mm | ≤1,350 MPa | Up to 9 | 8.00–14.00 mm | 3.00–6.00 mm | Up to 10 m/s | 75–132 kW |
| 1200 mm | ≤1,350 MPa | 2–10 | 8.00–16.00 mm | 3.00–8.00 mm | Up to 13 m/s | 90–160 kW |
These ranges should not be used as a substitute for a drawing schedule. Two customers using the same inlet and outlet diameters may require different machines because their wire grades, tensile strengths, surface treatments or finished properties are different.
Selecting the Drawing Block Size
Drawing block diameter affects torque, wire bending, cooling area, machine footprint and drive power.
Smaller blocks are generally associated with smaller wire diameters and higher line speeds. Larger blocks are used where heavier wire and higher torque are involved. However, a buyer should not select a machine based only on the largest inlet diameter shown in a catalogue.
The relationship between wire diameter and block diameter must be suitable for the material. A block that is too small may subject a large or high-strength wire to excessive bending. A significantly oversized block may increase equipment cost, floor-space requirements and installed power without delivering a practical production advantage.
The preferred block size should therefore be determined after confirming the wire grade, maximum inlet strength, diameter route and planned product range.
A factory producing only one stable specification can optimize the line for that product. A contract manufacturer processing many diameters may benefit from a more flexible block arrangement, additional drive capacity and recipe-based control.
Determining the Number of Drawing Passes
The number of passes is determined by the total area reduction and the acceptable reduction assigned to each die.
Using too few passes can increase drawing force, wire temperature and die wear. It can also lead to central defects, surface cracking or wire breakage. Using more passes than necessary increases equipment cost, line length and maintenance requirements.
A suitable drawing schedule should show the inlet and outlet diameter of every pass, the area reduction, elongation, block speed, expected drawing force and estimated motor load.
Engineering should also consider the finished mechanical properties. Diameter reduction work-hardens the wire, increasing its tensile strength and reducing its ductility. If the wire becomes too hard for the required final diameter, intermediate heat treatment may be necessary.
The number of installed blocks and the number used for a specific product do not always have to be identical. A production line may include extra blocks to support additional wire sizes, provided that its mechanical and control design permits selected passes to be bypassed safely.
Surface Preparation and Lubrication
The condition of the incoming wire has a major influence on process stability. Scale, rust or inconsistent surface coating can prevent the drawing powder from forming an effective lubricating film.
Poor preparation often leads to high drawing force, die scoring, scratches, overheating and frequent wire breaks. It may also create inconsistent finished-wire properties.
Depending on the wire and production route, surface preparation may involve mechanical descaling, shot blasting, pickling, washing, drying or application of a lubricant-carrier coating.
The selected drawing powder must be compatible with the wire material, drawing temperature and downstream process. A lubricant suitable for low-speed low-carbon wire may not perform correctly on high-speed high-carbon wire.
Dry drawing should not be described as producing a completely residue-free wire. Although the process does not immerse the wire in oil or emulsion, drawing powder can remain on the surface. The required cleaning method depends on whether the next process is heat treatment, electroplating, coating, welding-wire finishing or cold forming.
Cooling and Temperature Control
A considerable portion of the mechanical energy used in drawing becomes heat. This heat is generated mainly by wire deformation and friction between the wire and die.
Insufficient cooling reduces lubricant effectiveness and shortens die life. It can also cause unstable finished diameters and affect the mechanical properties of the wire.
The cooling system must be sized for continuous production rather than short trial runs. The technical agreement should state the required cooling-water temperature, flow, pressure and quality.
A machine tested with unusually cold factory water may not achieve the same result at a customer’s plant where the water temperature is higher. Production guarantees should therefore record the cooling conditions used during acceptance testing.
Water passages must also be designed for inspection and maintenance. Scale or contamination inside a cooling circuit gradually reduces heat-transfer efficiency, even if water still appears to be flowing.
Drive and Tension Coordination
In a multi-block line, every downstream block runs faster because the wire becomes longer as its diameter decreases. The speed relationship between blocks must correspond to the drawing schedule.
Small synchronization errors can change inter-block tension. Excessive tension may break the wire or pull it through the next die incorrectly. Insufficient tension can create loose wire, unstable wrapping or surface damage.
Modern lines generally use individual AC motors with variable-frequency drives and PLC coordination. The control system can use dancer position, motor torque or tension feedback to correct small speed differences.
The HMI should allow authorized operators to store product recipes containing speed, tension and process settings. Recipe management reduces setup time and helps prevent incorrect parameters from being entered during product changes.
Remote access can assist fault diagnosis, but it should only be enabled through a customer-approved connection with appropriate access control. Remote connectivity should never bypass safety functions or allow unexpected machine movement.
Dry Drawing Compared with Wet Drawing
Dry and wet drawing serve different process requirements.
Dry drawing is commonly used for rod breakdown and medium-diameter steel wire. It provides high pulling force and can process high-strength materials using dry powdered lubricant.
Wet drawing uses liquid lubricant or emulsion and normally provides more intensive lubrication and cooling around the wire and dies. It is commonly selected for fine or final drawing.
Some production routes use dry drawing first and wet drawing afterwards. This allows the dry line to perform the major reduction while the wet line produces the final small diameter.
Neither process is always cleaner, cheaper or more energy-efficient. The correct choice depends on the material, required diameter, production volume, surface requirement, maintenance resources and downstream process.
Defining Production Capacity Correctly
Production capacity should not be stated only as maximum line speed. Buyers should evaluate sustained output over an agreed production period.
Real production efficiency is affected by coil changes, threading, die changes, wire breaks, cleaning and scheduled maintenance. A machine with a high catalogue speed may produce less saleable wire if the process is unstable or changeovers are slow.
A useful capacity guarantee should specify the test material, inlet and outlet diameters, sustained speed, test duration, finished-wire tolerance and accepted waste rate.
Annual output estimates should also use a realistic utilization factor rather than assuming continuous production at maximum speed for every available hour.
Factory Acceptance Testing
The factory acceptance test should use an agreed wire grade with a recorded inlet diameter, tensile strength and surface condition.
The machine should demonstrate stable continuous operation after normal operating temperature has been reached. Test results should record sustained drawing speed, finished diameter, diameter variation, surface condition, motor load and cooling performance.
If mechanical properties are part of the contract, the agreed tensile-strength, elongation, torsion or bending tests should be completed using a defined test method.
Safety functions should be tested separately. The test should confirm emergency stopping, guard interlocks, wire-break detection, restart prevention and alarm response.
The test documentation should identify the measuring instruments and their calibration status. This is especially important when a tolerance guarantee forms part of the purchase contract.
Site acceptance should verify utilities, foundation, exhaust, upstream and downstream interfaces and operation with the customer’s normal production material.
Requirements for European and U.S. Projects
Safety and electrical requirements should be confirmed before the machine design is finalized.
For European projects, the technical agreement may reference ISO 12100 for risk assessment, IEC 60204-1 for machine electrical equipment and ISO 13849-1 for safety-related control systems. The applicable EU machinery legislation must be determined according to the date on which the equipment is placed on the market.
The contract should define responsibility for conformity assessment, the technical file, instructions, declaration and CE marking. Using CE-marked components does not automatically establish conformity of the complete line.
For U.S. projects, the customer may require machine guarding consistent with OSHA 29 CFR 1910.212 and electrical design based on the specified edition of NFPA 79. Local requirements for industrial control panels, short-circuit current ratings and inspection by the authority having jurisdiction should also be confirmed.
Compliance should not be claimed as a general catalogue feature. It must relate to an agreed machine scope, destination, standard edition and supporting documentation.
Information Required for Dry Drawing Machine Selection
Before preparing a technical proposal, the manufacturer should receive the exact wire material and international grade, inlet and outlet diameters, inlet tensile-strength range, required finished properties, surface-preparation method and target production output.
Incoming coil dimensions and weight must be provided together with the required finished package. The customer should also define diameter tolerance, ovality, surface requirements, factory voltage, cooling-water conditions and destination-country standards.
With this information, Sky Bluer Machinery can calculate a preliminary drawing schedule and recommend the block diameter, number of passes, motor capacity and suitable line arrangement.
Without complete material and production information, any model selection should be treated as preliminary.
Conclusion
A dry wire drawing machine must be selected as a complete process system rather than an isolated piece of equipment.
The correct configuration depends on the interaction between wire grade, surface preparation, drawing schedule, block size, drive power, lubrication, cooling, tension control and finished-wire requirements.
Catalogue data provides a useful starting point, but the final decision should be supported by a pass-by-pass drawing schedule and a clearly defined acceptance test.
To obtain a technical recommendation from Sky Bluer Machinery, provide your wire grade, inlet and outlet diameters, tensile-strength range, coil information, target output, finished package and destination standards. These details allow the engineering team to evaluate the actual drawing conditions and prepare a machine configuration for the required production process.
