In flat wire production, the 2-Hi rolling mill works together with wire drawing, annealing, lubrication, and tension control systems in a continuous production line.
Because of its stable rolling force and strong deformation capability, the 2-Hi rolling mill is widely used for precision rolling of copper, aluminum, stainless steel, and carbon steel flat wire.
At CRM TEAM, we provide complete flat wire production solutions including wire drawing machines, rolling mills, annealing systems, lubrication systems, and automatic spoolers.

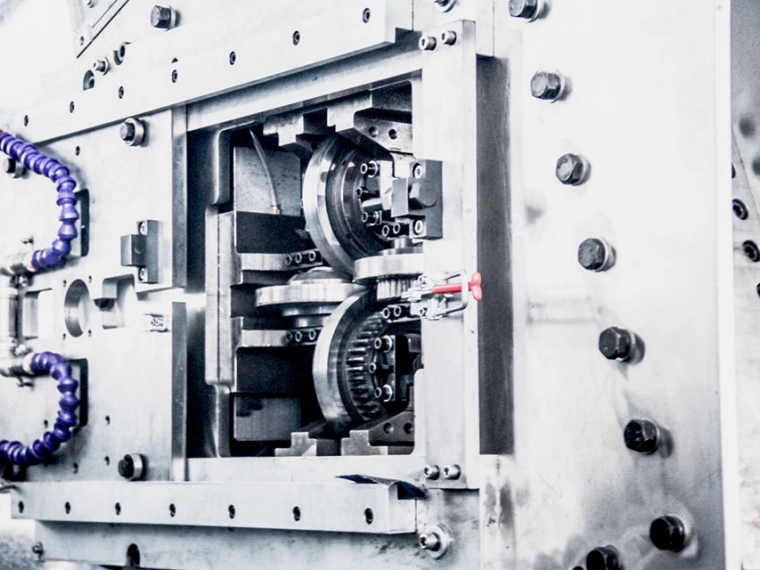

What Is a 2-Hi Rolling Mill?
A 2-Hi rolling mill, also called a two-high rolling mill, uses two horizontally positioned rolls to compress and deform metal wire, rod, or strip material.

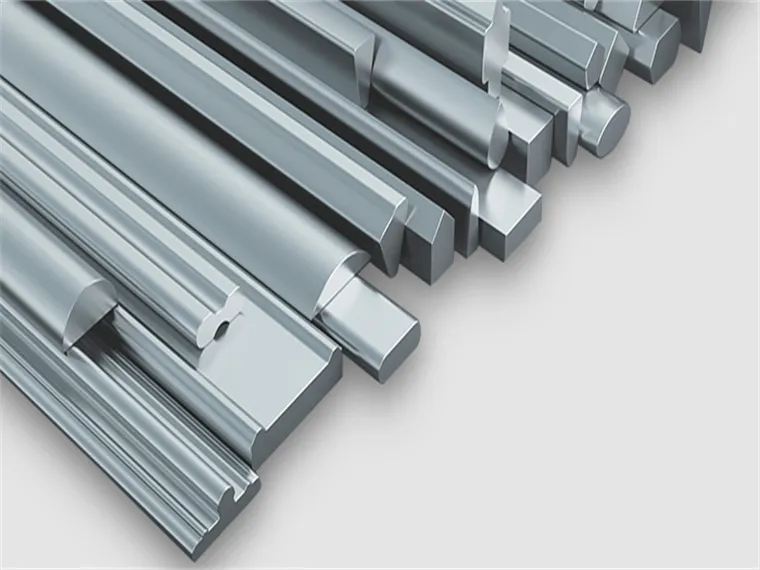

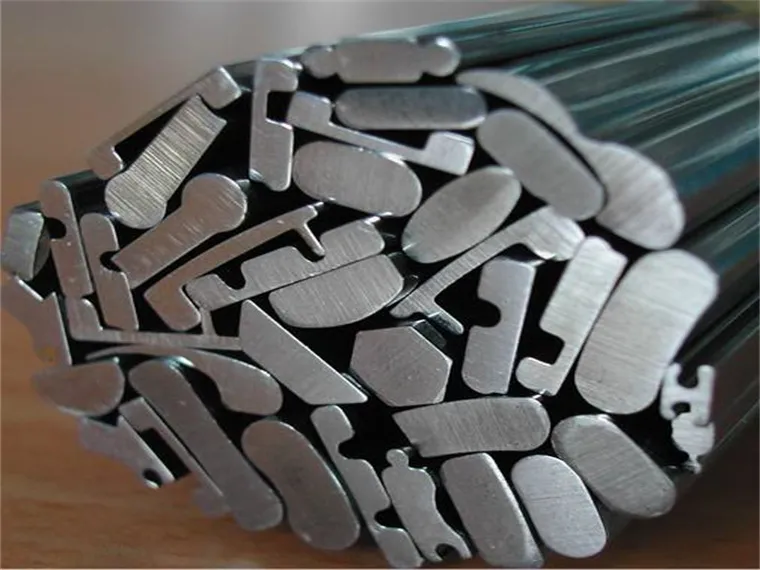

The system is commonly used to convert round wire into:
- Flat wire
- Rectangular wire
- Square wire
- Trapezoidal wire
- Special shaped conductors
Compared with stamping or extrusion processes, cold rolling provides:
- Better dimensional consistency
- Smoother surface finish
- Continuous production capability
- Higher material utilization
- Improved mechanical stability
The rolling process introduces controlled plastic deformation while maintaining stable width-to-thickness ratios.
Why 2-Hi Rolling Mills Are Still Widely Used in Flat Wire Manufacturing
Although cluster rolling mills are used for ultra-thin materials, 2-Hi rolling mills remain essential in industrial wire production because they provide:
- High rolling rigidity
- Large reduction capability
- Strong roll bite force
- Easier maintenance
- Better compatibility with larger wire diameters
They are widely used for:
- Copper flat wire production
- Aluminum conductor rolling
- Stainless steel flat wire
- High carbon steel wire flattening
- Brass strip rolling
- Skin-pass processing
- Pre-rolling before fine drawing
For many industrial applications, production stability and mechanical reliability are more important than extremely thin gauge capability.
How a 2-Hi Rolling Mill Works in Wire Processing Production
In flat wire manufacturing, the incoming round wire passes continuously through two rotating rolls.
During deformation:
- Wire thickness decreases
- Width expands gradually
- Material elongates longitudinally
- Internal stress redistributes
- Surface friction changes dynamically
The final product quality depends on balancing:
- Rolling pressure
- Reduction ratio
- Roll diameter
- Roll crown geometry
- Entry and exit tension
- Material yield strength
- Lubrication stability
- Thermal expansion compensation
This is why precision flat wire rolling requires coordinated control across the full production line.
A typical production configuration includes:
- Payoff system
- Surface cleaning section
- Precision wire drawing machine
- 2-Hi rolling mill
- Automatic tension control
- Online lubrication system
- Continuous annealing system
- Precision take-up system
Core Deformation Principles in Precision Flat Wire Rolling
The rolling process appears simple, but material deformation inside the roll gap is highly complex.
When rolling pressure increases:
- Contact area expands
- Roll flattening changes actual reduction
- Friction affects width spread
- Residual stress accumulates internally
- Edge deformation becomes unstable
If reduction per pass becomes excessive:
- Edge cracking may occur
- Surface scratches increase
- Internal stress rises sharply
- Flatness becomes unstable
In high-precision conductor production, deformation must remain stable throughout continuous operation.
This is why advanced rolling lines combine:
- Servo-hydraulic gap control
- Automatic tension synchronization
- Roll cooling systems
- Multi-stage lubrication circulation
- Online dimensional monitoring
Technical Specifications of Modern 2-Hi Rolling Mills
Modern rolling mills focus heavily on rigidity, automation precision, thermal stability, and dimensional consistency.
Rolling Force Capacity and Mill Structure
Mill stand rigidity directly affects thickness stability.
Heavy-duty welded or cast structures reduce elastic deformation under high rolling force.
Typical technical parameters:
| Parameter | Typical Range |
| Rolling Force Capacity | 50 kN – 13,000 kN |
| Roll Diameter | 50 – 450 mm |
| Roll Face Width | 30 – 500 mm |
| Rolling Speed | 5 – 300 m/min |
| Reduction Per Pass | 5% – 45% |
High carbon steel and stainless steel rolling usually require larger rolling force capacity because of higher deformation resistance.
Precision Roll Gap Control System
Typical control capability:
| Control Item | Accuracy |
| Roll Gap Adjustment | ±0.001 mm |
| Thickness Stability | ±0.002 mm |
| Width Tolerance | ±0.01 – ±0.05 mm |
| Tension Synchronization | ±0.5% |
Modern rolling lines use servo-controlled hydraulic gap systems to maintain stable thickness during continuous production.
Automatic compensation becomes critical during:
- Roll thermal expansion
- Speed changes
- Multi-pass rolling
- Long continuous operation
Rolling Speed and Reduction Capability
Rolling speed depends on:
- Material hardness
- Lubrication condition
- Reduction ratio
- Surface quality requirements
Typical production speed:
| Material | Rolling Speed |
| Copper | 80 – 300 m/min |
| Aluminum | 100 – 300 m/min |
| Stainless Steel | 20 – 120 m/min |
| High Carbon Steel | 10 – 80 m/min |
Roll Materials and Surface Engineering
Roll quality directly determines:
- Surface finish
- Roll life
- Dimensional stability
- Edge quality
Common roll materials:
| Roll Material | Application |
| Tool Steel Rolls | General steel and copper rolling |
| Tungsten Carbide Rolls | High wear resistance applications |
| Powder Metallurgy Rolls | Ultra precision rolling |
| Mirror Polished Rolls | Electrical conductors |
Typical hardness:
- Tool steel rolls: HRC 58–64
- Tungsten carbide rolls: HRA 85–92
Mirror-polished rolls are often required for transformer conductors and enameled flat wire production.
Automatic Tension Control Technology
Tension stability is one of the most important factors in flat wire production.
Unstable tension directly affects:
- Thickness fluctuation
- Width consistency
- Surface finish
- Edge cracking
- Final profile geometry
Modern production lines use:
- Dancer systems
- Servo tension feedback
- Closed-loop synchronization
- Automatic speed compensation
Lubrication and Cooling System Design
Rolling generates large amounts of friction and heat.
Without stable lubrication:
- Roll wear increases rapidly
- Surface scratches appear
- Oxidation becomes unstable
- Dimensional consistency deteriorates
Our rolling systems use circulation lubrication with:
- Multi-stage oil filtration
- Heat exchangers
- Oil temperature stabilization
- High-pressure spray lubrication
- Flow monitoring systems
Typical lubrication parameters:
| Item | Typical Value |
| Filtration Precision | 5–20 μm |
| Oil Temperature Control | ±1°C |
| Cooling Flow Rate | 20–120 L/min |
| Lubrication Pressure | 0.2–1.5 MPa |
Typical Technical Parameters of Flat Wire Rolling Production
Production capability depends on material type, incoming diameter, reduction schedule, and rolling configuration.
Input Material Range
| Material Type | Input Diameter |
| Copper Wire | 0.5 – 20 mm |
| Aluminum Wire | 0.8 – 20 mm |
| Stainless Steel Wire | 0.3 – 12 mm |
| High Carbon Steel | 0.5 – 10 mm |
Finished Flat Wire Dimensions
| Parameter | Production Range |
| Finished Thickness | 0.03 – 8.0 mm |
| Finished Width | 0.2 – 50 mm |
Thickness and Width Tolerance
| Parameter | Tolerance |
| Thickness Tolerance | ±0.001 – ±0.005 mm |
| Width Tolerance | ±0.01 – ±0.05 mm |
Surface Roughness and Edge Quality
| Item | Typical Value |
| Surface Roughness | Ra 0.05 – 0.4 μm |
| Edge Radius Control | Customizable |
| Flatness Stability | High Precision Grade |
Relationship Between Wire Drawing and Rolling Stability
One of the biggest mistakes in flat wire production is treating rolling as an isolated process.
In reality, incoming wire quality from the drawing section directly affects:
- Thickness consistency
- Edge stability
- Surface quality
- Residual stress
- Roll wear rate
For example:
If incoming wire diameter fluctuates excessively, the final flat wire thickness will become unstable after rolling.
Because of this, precision production lines normally integrate:
- Precision wire drawing machine
- Online diameter monitoring
- Multi-pass rolling mill
- Automatic tension buffering
- Continuous annealing system
- Precision take-up system
This integrated structure stabilizes deformation throughout the entire production process.
Materials Suitable for 2-Hi Rolling Mills
A 2-Hi rolling mill can process a wide range of ferrous and non-ferrous materials.
Copper and Aluminum Flat Wire Rolling
Copper and aluminum allow larger reduction ratios because of their softer deformation behavior.
Typical applications include:
- Transformer conductors
- Enameled rectangular wire
- EV motor winding wire
- Busbar pre-processing
Stainless Steel and High Carbon Steel Rolling
These materials require:
- Higher rolling force
- Stronger roll hardness
- Better cooling systems
- Stable lubrication conditions
Applications include:
- Spring wire
- Precision industrial strip
- Medical wire
- Structural flat wire
Titanium and Precision Alloy Wire Processing
Titanium alloys and precision electronic alloys require:
- Strict temperature control
- Stable lubrication chemistry
- Low residual stress deformation
- Precision tension synchronization
Common Problems in Flat Wire Rolling Production
Thickness Fluctuation
Usually caused by:
- Unstable tension
- Roll thermal expansion
- Poor incoming wire consistency
- Servo response delay
Edge Cracking and Burr Formation
Common causes include:
- Excessive reduction ratio
- Incorrect roll geometry
- Material hardness variation
- Insufficient lubrication
Surface Scratches and Roll Marks
Normally related to:
- Dirty lubrication oil
- Roll surface damage
- Poor filtration systems
- Excessive rolling temperature
Residual Stress After Rolling
Residual stress may lead to:
- Wire twisting
- Poor spooling
- Instability during annealing
- Dimensional recovery
Industrial Applications of Precision Flat Wire
Precision flat wire produced by rolling systems is widely used in modern industrial manufacturing.
Transformer and Enameled Wire Production
High dimensional stability is critical for insulation coating quality and winding density.
EV Motor and New Energy Conductors
Electric vehicle motors require compact high-efficiency conductors with precise geometry.
Aerospace and Medical Alloy Applications
Precision alloy wire requires:
- Stable deformation
- Low residual stress
- High surface quality
- Strict dimensional consistency
Complete Flat Wire Production Line Solutions
A rolling mill alone cannot guarantee stable production quality.
Real production stability depends on coordination between:
- Drawing systems
- Rolling systems
- Lubrication
- Cooling
- Annealing
- Automation
- Tension synchronization
Wire Drawing Machine Integration
Stable incoming wire diameter is essential for rolling precision.
Continuous Annealing Systems
Annealing stabilizes mechanical properties and reduces residual stress.
Online Tension and Diameter Monitoring
Online feedback systems improve dimensional consistency during continuous operation.
Automatic Spooling and Take-Up Systems
Precision spooling improves production efficiency and reduces conductor damage.
At Sky bluer China, we provide complete turnkey solutions for precision flat wire manufacturing, including:
- Wire drawing machines
- 2-Hi rolling mills
- Multi-pass rolling systems
- Continuous annealing lines
- Automatic tension control
- Lubrication circulation systems
- Precision spoolers
- Industrial automation integration
We also provide sample testing and process evaluation according to customer materials and target conductor dimensions.
Why Manufacturers Choose Sky Bluer China
Manufacturers choose Sky bluer China because modern flat wire production requires more than standalone machinery.
Stable production depends on:
- Integrated process design
- Precision deformation control
- Reliable automation systems
- Long-term dimensional consistency
- Material-specific rolling technology
Our production solutions are designed for continuous industrial operation across copper, aluminum, stainless steel, carbon steel, and precision alloy applications.
Conclusion
In modern flat wire manufacturing, the performance of a 2-Hi rolling mill is determined not only by rolling force, but by the stability of the complete deformation system.
Precision conductor production requires coordinated control of:
- Material deformation
- Tension stability
- Thermal expansion
- Lubrication behavior
- Roll rigidity
- Automation response
As electrical, energy, aerospace, and industrial applications continue demanding tighter tolerances and higher surface quality, integrated rolling and wire drawing production lines are becoming increasingly important.
Sky bluer China provides complete rolling and wire drawing solutions for manufacturers requiring stable, high-precision flat wire production across ferrous and non-ferrous materials.
