Copper wire is one of the most widely used conductive materials in the electrical, electronics, automotive, telecommunications, and renewable energy industries. As demand for finer wire diameters, higher production speeds, and better surface quality continues to increase, modern copper wire drawing machines have become essential equipment for manufacturers seeking higher productivity and consistent quality.
A copper wire drawing machine reduces the diameter of copper wire by pulling it through a series of precision drawing dies. During this multi-pass process, the wire diameter is gradually reduced while maintaining excellent electrical conductivity, dimensional accuracy, and surface finish. Compared with traditional drawing methods, modern CNC-controlled drawing machines provide higher efficiency, lower wire breakage rates, and significantly longer die life.
At Sky Bluer China, we manufacture complete copper wire drawing solutions, including rod breakdown machines, intermediate drawing machines, fine wire drawing machines, and superfine wire drawing machines. Our equipment is designed for continuous production, intelligent control, and reliable performance for both standard copper wire and specialty alloy wire.
What Is a Copper Wire Drawing Machine?
A copper wire drawing machine is a precision metal processing system used to reduce the diameter of copper wire through multiple drawing dies. Each drawing pass decreases the wire diameter while preserving the material’s mechanical properties and electrical conductivity.
The complete production line typically consists of:
- Pay-off system
- Multi-stage drawing machine
- Wet lubrication system
- Cooling system
- Annealing unit (optional)
- Tension control system
- Automatic take-up machine
- PLC control cabinet
Depending on the required finished diameter, manufacturers can choose different machine configurations ranging from heavy-duty rod breakdown machines to ultra-fine wire drawing machines.
Types of Copper Wire Drawing Machines
Rod Breakdown Machine
Rod breakdown machines process 8 mm copper rods into intermediate wire sizes suitable for further drawing operations.
Typical specifications:
| Item | Specification |
| Inlet Diameter | 8.0 mm |
| Outlet Diameter | 1.2–3.0 mm |
| Drawing Dies | 9–13 |
| Max Speed | 20–25 m/s |
| Lubrication | Wet |
| Application | Cable and electrical wire production |
This machine is commonly used in cable factories and large-scale wire manufacturers.
Intermediate Copper Wire Drawing Machine
Intermediate drawing machines further reduce wire diameters from approximately 3.0 mm to 0.8 mm while maintaining stable wire tension and excellent roundness.
Typical specifications:
| Item | Specification |
| Inlet Diameter | 1.5–3.0 mm |
| Outlet Diameter | 0.8–1.5 mm |
| Drawing Speed | Up to 25 m/s |
| Number of Dies | 10–18 |
These machines serve as the bridge between rod breakdown and fine wire production.

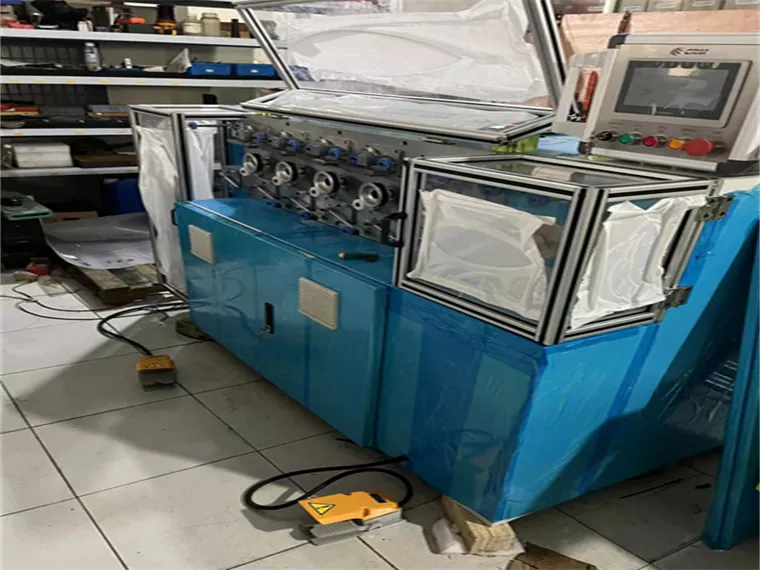

Fine Copper Wire Drawing Machine
Fine wire drawing machines are designed for precision production of small-diameter copper wire used in electronics and communication industries.
Typical specifications:
| Item | Specification |
| Inlet Diameter | 0.8–1.2 mm |
| Outlet Diameter | 0.05–0.50 mm |
| Maximum Speed | Up to 2,000 m/min |
| Number of Dies | 16–28 |
| Lubrication | Wet |
| Tension Control | Automatic |
Advanced servo control and precision capstans ensure stable drawing even at extremely high speeds.
Super Fine Wire Drawing Machine
For ultra-fine applications, superfine drawing machines can produce wire diameters down to 0.015 mm depending on material and process requirements.
These machines are widely used in:
- Semiconductor manufacturing
- Medical devices
- Bonding wire production
- Precision electronics
Materials Supported
Modern copper wire drawing machines are capable of processing a wide range of conductive materials, including:
- Pure Copper
- Oxygen-Free Copper (OFC)
- Silver-Plated Copper
- Tin-Plated Copper
- Copper Alloys
- Brass
- Bronze
- Aluminum
- Stainless Steel (special configuration)
- Precious Metals such as Gold, Silver, and Platinum
Different materials require customized die angles, lubrication systems, and drawing schedules to achieve optimal performance.
Key Technical Features
High-quality copper wire drawing machines incorporate several advanced technologies to improve production efficiency and reduce maintenance costs.
Precision Drawing Dies
Machines can be equipped with tungsten carbide or PCD (Polycrystalline Diamond) dies.
Advantages include:
- Excellent dimensional accuracy
- Longer service life
- Lower friction
- Reduced wire breakage
- Better surface finish
Wet Lubrication System
A fully enclosed wet lubrication system continuously cools both the wire and drawing dies.
Benefits include:
- Reduced die wear
- Lower drawing temperature
- Stable drawing speed
- Improved wire surface quality
- Longer lubricant service life through multi-stage filtration
Intelligent Tension Control
Servo-controlled tension systems automatically maintain constant wire tension throughout the drawing process.
This minimizes vibration and prevents wire breakage, particularly when producing fine or silver-plated copper wire.
PLC Automation

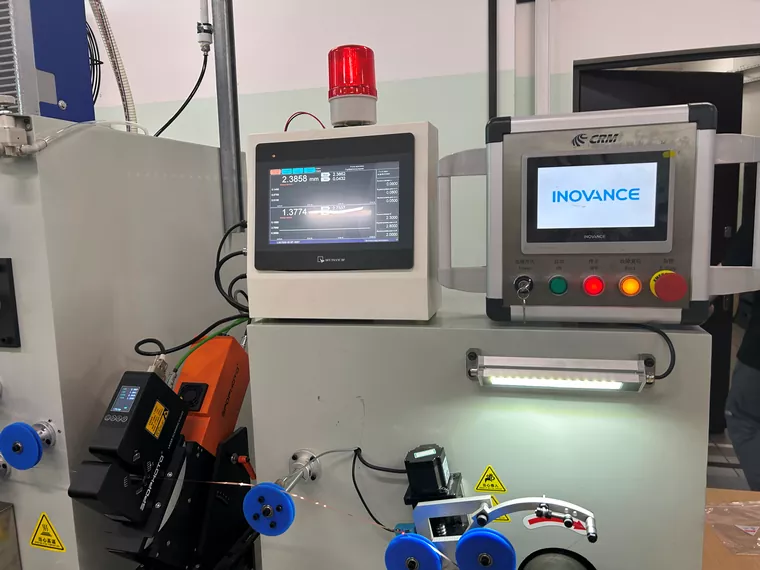

Modern machines are equipped with PLC and touchscreen HMI systems that allow operators to monitor:
- Drawing speed
- Motor load
- Die position
- Wire tension
- Production length
- Alarm status
Automatic diagnostics help reduce downtime and simplify maintenance.
Common Applications
Copper wire drawing machines are widely used in many industries, including:
- Electrical cables
- Automotive wiring harnesses
- Electronic components
- Communication cables
- Magnet wire production
- Transformer windings
- Solar PV ribbon manufacturing
- Medical devices
- Aerospace applications
- Precision instrumentation
Their flexibility makes them suitable for both high-volume industrial production and specialty wire manufacturing.
Maintenance and Wear Parts
Routine maintenance ensures stable production and extends equipment life.
Typical wear parts include:
| Component | Typical Service Life |
| Tungsten Carbide Dies | 300–1,000 kg of wire |
| PCD Dies | 5,000–20,000 kg or more |
| Capstans | 1–2 years |
| Bearings | 12–24 months |
| Tension Rollers | 12–18 months |
| Lubrication Filters | 3–6 months |
Regular inspection of dies, lubrication systems, and bearings significantly reduces unexpected downtime.
How to Choose the Right Copper Wire Drawing Machine
Selecting the appropriate machine depends on several production factors:
- Inlet wire diameter
- Required finished diameter
- Wire material
- Annual production capacity
- Drawing speed
- Number of drawing passes
- Automation level
- Annealing requirements
- Factory layout
- Future expansion plans
Working with an experienced manufacturer ensures the machine is properly configured for your specific production process.
Why Choose Sky Bluer China?
Sky Bluer China specializes in the design and manufacture of high-performance wire drawing equipment for the global wire and cable industry. With years of engineering experience, we provide complete production solutions for copper, brass, stainless steel, carbon steel, and alloy wire processing.
Our advantages include:
- Complete wire drawing production lines
- Custom machine configurations
- High-speed and energy-efficient designs
- Precision manufacturing
- Stable quality and reliable performance
- Global technical support
- Professional installation and training services
- Fast spare parts supply
Whether you require a standalone fine wire drawing machine or a complete copper wire production line, our engineering team can provide a customized solution tailored to your production goals.
Conclusion
A copper wire drawing machine is far more than a simple diameter reduction device. It is a high-precision production system that combines advanced mechanics, intelligent control, precision tooling, and efficient lubrication to deliver consistent wire quality and high productivity. By selecting the right machine configuration and maintaining proper operating conditions, manufacturers can achieve lower production costs, longer equipment life, and superior finished wire quality.
As a professional copper wire drawing machine manufacturer, Sky Bluer China is committed to delivering innovative, reliable, and customized solutions that help customers improve efficiency and remain competitive in today’s rapidly evolving wire manufacturing industry.
