Sky Bluer China designs and manufactures the CRM-D Cold Rolling Cassettes, also known as cassette roller dies, for high precision wire forming and metal processing applications. The CRM-D series is developed for manufacturers requiring stable dimensional control, improved surface quality, reduced friction and efficient production of round, flat and shaped wires.
Unlike conventional wire drawing dies that rely on sliding deformation, cold rolling cassettes use precision-engineered carbide rollers to apply controlled rolling pressure on the wire surface. This rolling process reduces contact friction, improves material flow, extends tool life and enables processing of materials that are difficult to deform by traditional drawing methods.
CRM-D Cold Rolling Cassettes are widely used for processing steel wire, stainless steel wire, carbon steel wire, copper wire, titanium wire, titanium alloys, tantalum wire, zinc wire and flux cored welding wire. They are suitable for applications including shaped wire production, reinforcing wire compaction, rope wire compacting, welding wire forming and precision wire calibration.
With advanced roller design, rigid cassette structure and optimized lubrication systems, Sky Bluer CRM-D Cold Rolling Cassettes provide reliable solutions for modern wire manufacturers requiring high productivity and consistent product quality.
Advanced Cold Rolling Cassette Technology for Precision Wire Manufacturing

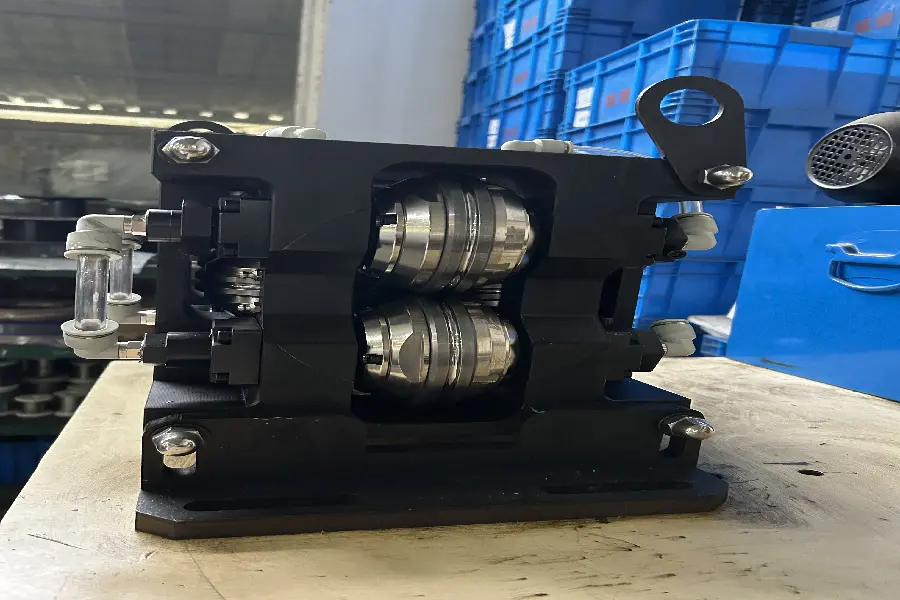

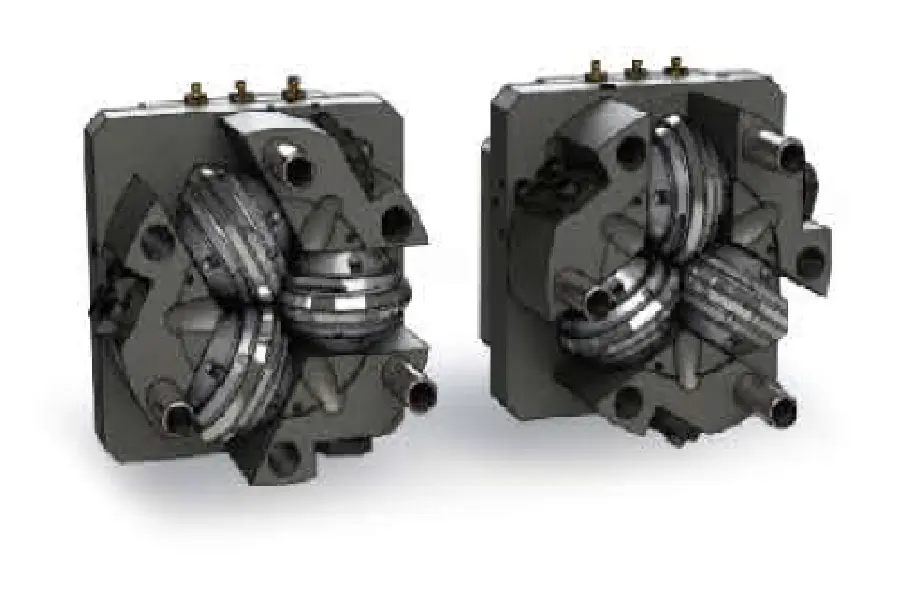

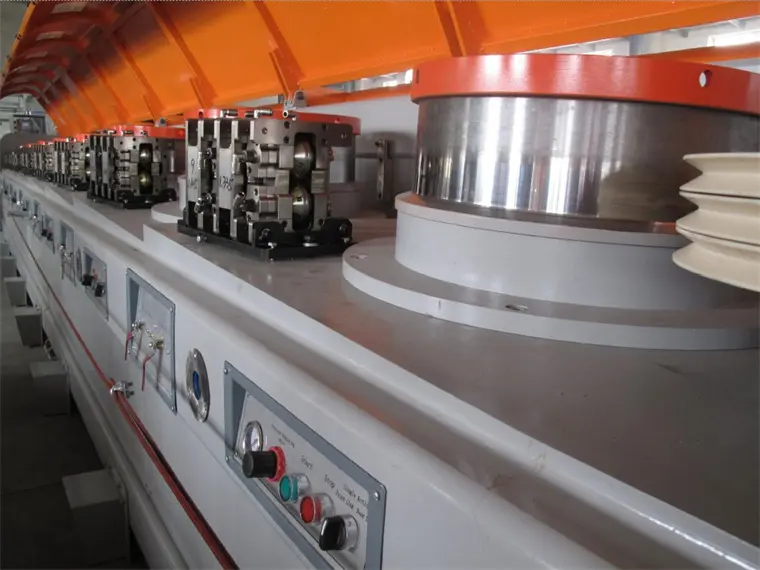

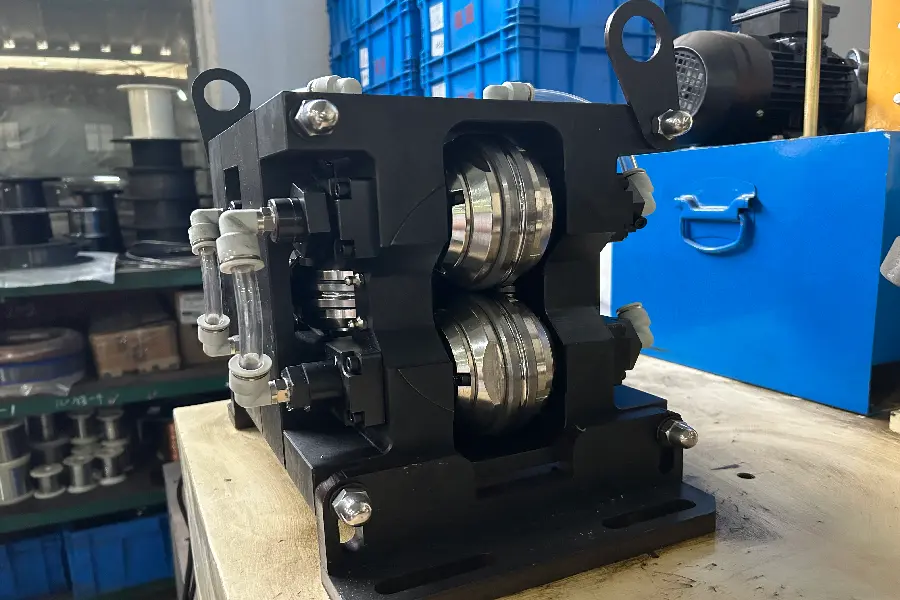

The CRM-D Cold Rolling Cassette is a precision forming unit installed on wire drawing lines, straight line drawing machines and specialized wire processing equipment. The cassette integrates multiple precision rollers arranged around the wire path, allowing controlled deformation from different directions.
During operation, the wire passes through the roller system while each roller applies a defined radial force. Compared with traditional drawing dies, cold rolling technology minimizes sliding friction between the tool and wire surface, resulting in lower heat generation and reduced surface damage.
The rolling process improves dimensional accuracy by gradually correcting wire geometry through controlled plastic deformation. This makes CRM-D cassettes especially suitable for producing wires with strict requirements for diameter tolerance, profile accuracy and surface finish.
CRM-D Cold Rolling Cassette Technical Specifications
| Item | Technical Specification |
| Product Type | CRM-D Cold Rolling Cassette |
| Alternative Name | Cassette Roller Die, Wire Rolling Cassette |
| Processing Method | Multi-roll cold rolling forming |

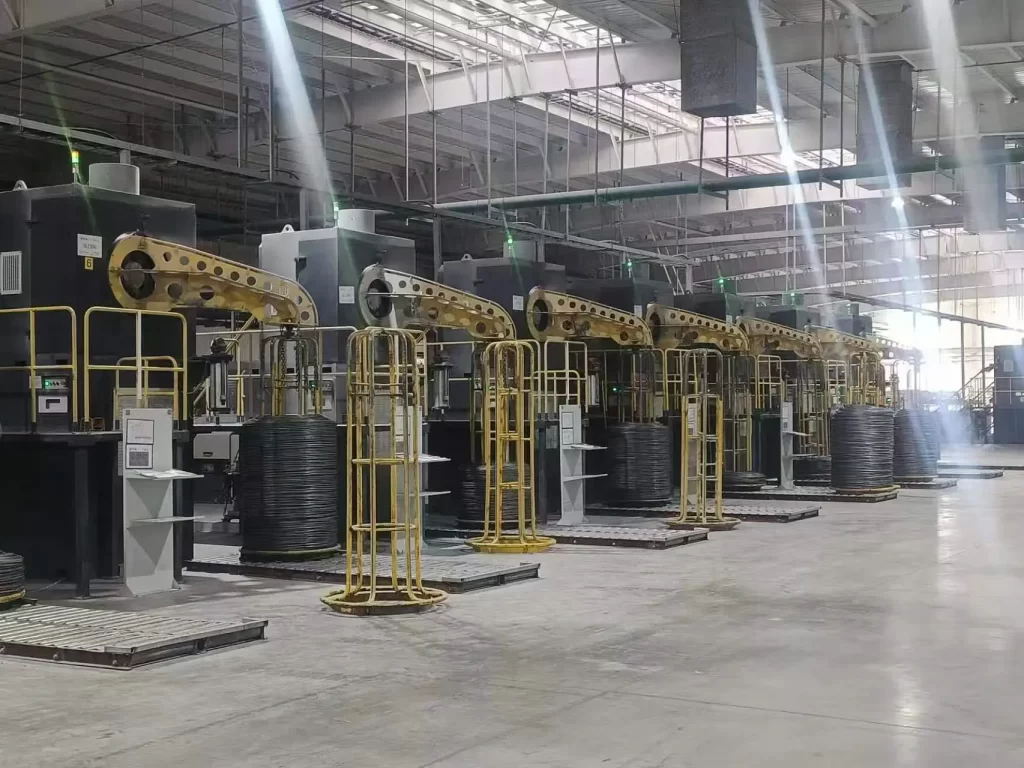

| Applicable Machine | Straight Line Wire Drawing Machine, Fine Wire Drawing Line, Special Wire Forming Line |
| Roller Material | Tungsten Carbide Rollers |
| Roller Diameter Range | 50 mm to 350 mm |
| Wire Shape Capability | Round Wire, Flat Wire, Square Wire, Rectangular Wire, Special Profile Wire |
| Material Capability | Steel, Stainless Steel, Copper, Titanium, Titanium Alloy, Tantalum, Zinc, Flux Cored Welding Wire |
| Processing Temperature | Room Temperature Cold Processing |
| Lubrication System | External Lubrication or Integrated Cooling Lubrication System |
| Main Advantage | Low Friction Rolling Deformation |
| Application Type | Precision Reduction, Calibration, Compacting, Profile Forming |
| Production Benefit | Longer Tool Life, Improved Surface Quality, Reduced Energy Consumption |
Materials Processed by CRM-D Cold Rolling Cassettes
Sky Bluer CRM-D Cold Rolling Cassettes are engineered for a wide range of metallic materials, including conventional conductive materials and high-strength alloy materials.
| Material | Typical Application | Processing Advantage |
| Carbon Steel Wire | Spring Wire, Reinforcing Wire | Stable reduction and improved surface quality |
| Stainless Steel Wire | Medical Wire, Industrial Wire | Suitable for high-strength and corrosion-resistant materials |
| Copper Wire | Electrical Conductors, Precision Wire | Maintains dimensional accuracy and surface smoothness |
| Titanium Wire | Aerospace, Medical Components | Handles difficult-to-deform materials |
| Titanium Alloy Wire | High-performance Applications | Reduces deformation stress |
| Tantalum Wire | Electronic Components | Suitable for special metal processing |
| Zinc Wire | Industrial Applications | Provides controlled profile forming |
| Flux Cored Welding Wire | Welding Industry | Improves wire compactness and geometry consistency |

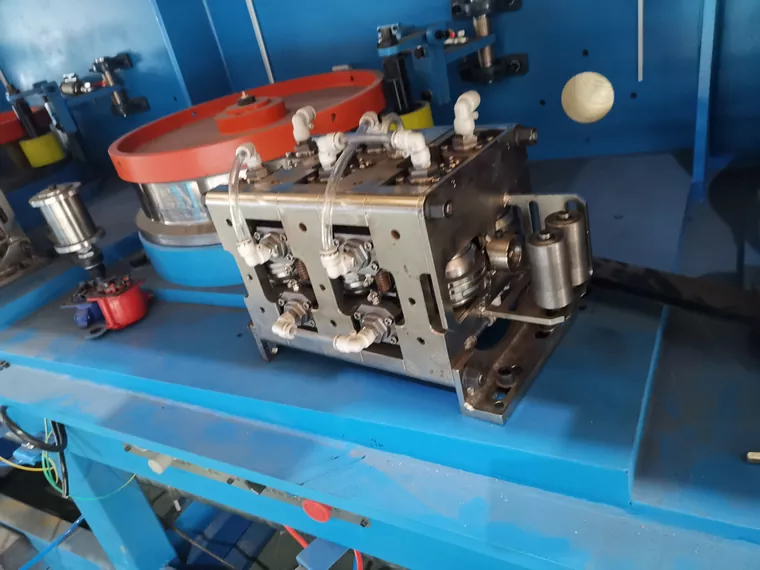

Micro Rolling Cassettes for Ultra Fine Wire Production
Sky Bluer CRM Micro Rolling Cassettes are specifically developed for fine wire and ultra-fine wire production where traditional drawing dies face limitations related to friction, wear and surface damage.
By replacing fixed drawing dies with precision rolling elements, micro rolling cassettes provide smoother material flow and significantly reduce the mechanical stress generated during deformation.
They are widely used in multi-pass drawing systems for:
Fine stainless steel wire
Medical wire
Electronic wire
Flux cored welding wire
Precision alloy wire
Technical Advantages of CRM-D Cold Rolling Cassette
Reduced Friction and Lower Energy Consumption
Traditional drawing dies create high sliding friction between the wire and die surface. This friction generates heat, increases lubricant consumption and accelerates tool wear.
The CRM-D rolling cassette uses rotational roller contact, transforming sliding friction into rolling contact. This significantly reduces deformation resistance and improves production efficiency.
Improved Wire Surface Quality
Because the rollers rotate continuously during processing, surface scratching and localized damage are minimized. This is especially important for high-value materials such as titanium alloys, stainless steel and precision copper wire.
The final wire surface achieves better consistency and improved appearance quality.
Longer Tool Life Compared with Traditional Dies
The service life of a rolling cassette depends on:
Material hardness
Reduction rate
Production speed
Lubrication condition
Maintenance frequency
Compared with conventional drawing dies, CRM-D cassettes provide longer operating life because the rollers experience lower friction and more uniform wear.
Processing Capability for Difficult-to-Deform Materials
Some advanced materials have high tensile strength and low ductility, making traditional drawing processes challenging.
CRM-D Cold Rolling Cassettes improve deformation conditions through controlled rolling pressure, making them suitable for:
Titanium alloys
High-strength stainless steel
Special alloy wire
Flux cored welding wire
CRM-D Cold Rolling Cassette Applications
| Industry | Application |
| Automotive Industry | Spring Wire, Reinforcement Wire |
| Welding Industry | Flux Cored Welding Wire Production |
| Electrical Industry | Precision Copper Wire Processing |
| Medical Industry | Stainless Steel and Titanium Medical Wire |
| Aerospace Industry | Titanium Alloy Wire Production |
| Cable Industry | Compacting and Shaping Wire |
| Hardware Industry | Special Profile Wire Manufacturing |
Cold Rolling Cassette Installation and Operation Process
Installing CRM-D Cold Rolling Cassette on a wire processing line requires accurate positioning and proper adjustment to achieve stable production.
The standard installation process includes:
- Cleaning the machine holder and checking cassette specifications
- Installing the cassette into the designated position
- Aligning wire entry and exit center lines
- Connecting lubrication and cooling systems
- Threading the wire through roller passes
- Adjusting roller pressure according to reduction requirements
- Testing at low speed before full production
- Monitoring temperature, vibration and roller wear during operation
Cold Rolling Cassette vs Traditional Wire Drawing Dies
| Comparison Item | Cold Rolling Cassette | Traditional Drawing Die |
| Deformation Method | Rolling deformation | Sliding deformation |
| Friction Level | Low | High |
| Surface Damage Risk | Lower | Higher |
| Tool Wear | Slow and uniform | Faster wear |
| Energy Consumption | Lower | Higher |
| Difficult Material Processing | Excellent capability | Limited capability |
| Profile Wire Production | Flexible | Requires special dies |
| Production Adjustment | Easier | Requires die replacement |
Why Choose Sky Bluer CRM-D Cold Rolling Cassettes
Sky Bluer China combines advanced wire forming technology with practical manufacturing experience to provide reliable cold rolling solutions for global wire manufacturers.
The CRM-D series is developed based on long-term experience in precision rolling mills, wire drawing equipment and special wire production systems.
Sky Bluer provides:
Customized cassette design according to wire profile requirements
Precision roller manufacturing
Technical support for production optimization
Complete wire processing line solutions
Replacement and upgrade solutions for existing drawing equipment
From standard wire production to complex alloy wire forming, Sky Bluer CRM-D Cold Rolling Cassettes help manufacturers improve efficiency, product quality and production reliability.
Frequently Asked Questions About Cold Rolling Cassettes
1. What is the main difference between a cold rolling cassette and a traditional wire drawing die?
A cold rolling cassette uses rotating rollers to deform the wire, while a traditional drawing die uses a fixed opening where the wire slides through under tensile force. Because the rollers rotate during processing, the CRM-D cassette reduces friction, lowers heat generation and provides better surface protection. This makes it more suitable for high precision wire production and difficult-to-process materials.
2. Can CRM-D Cold Rolling Cassettes produce shaped wire profiles?
Yes. CRM-D cassettes are widely used for producing special profile wires including flat wire, square wire, rectangular wire and customized cross sections. The roller geometry can be designed according to the required final profile, allowing manufacturers to achieve stable dimensions without relying on multiple customized drawing dies.
3. Which materials are suitable for Micro Rolling Cassettes?
Micro Rolling Cassettes are suitable for fine and ultra-fine wire materials including stainless steel, carbon steel, copper, titanium alloys and flux cored welding wire. They are especially beneficial when the material requires low friction processing or has strict surface quality requirements.
4. How long can CRM-D cassette rollers operate before replacement?
The service life depends on material hardness, reduction amount, production speed and lubrication conditions. Tungsten carbide rollers used in CRM-D cassettes provide excellent wear resistance. Proper lubrication and regular maintenance can significantly extend roller operating life compared with conventional drawing dies.
5. Can a cold rolling cassette replace existing drawing dies on a production line?
In many applications, CRM-D cold rolling cassettes can directly replace traditional drawing dies after suitable machine adaptation. Sky Bluer technical engineers evaluate wire size, material characteristics and production requirements to recommend the correct cassette configuration and installation method.
6. Why do manufacturers choose Sky Bluer CRM-D Cold Rolling Cassettes?
Sky Bluer China provides not only cassette roller dies but also complete technical support based on wire drawing and rolling system experience. The CRM-D series combines precision roller technology, durable materials and customized engineering solutions to help manufacturers achieve higher productivity, lower operating costs and improved wire quality.
