Engineering Guide to Low Carbon Straight Line Wire Drawing Machines
Low carbon steel wire is one of the most widely used industrial materials in construction, welding, mesh production, fasteners, nails, fencing, and general manufacturing. To achieve consistent wire diameter, excellent surface quality, and high productivity, manufacturers rely on a Low Carbon Straight Line Wire Drawing Machine.
Unlike traditional slip-type drawing machines, a straight line wire drawing machine allows each drawing block to operate independently with precise tension control. This design significantly improves dimensional accuracy, reduces wire breakage, and increases production speed, making it the preferred solution for modern wire manufacturers.
As a professional wire drawing machine manufacturer, CRM supplies complete straight line wire drawing solutions ranging from individual machines to turnkey production lines.

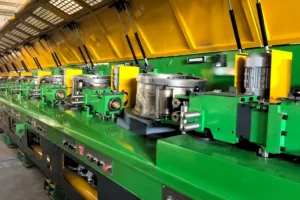

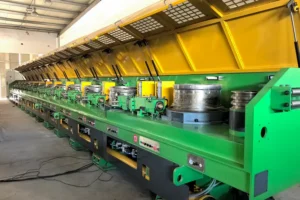

What Is a Low Carbon Straight Line Wire Drawing Machine?
A Low Carbon Straight Line Wire Drawing Machine is designed to reduce the diameter of low carbon steel wire by pulling the wire through a sequence of drawing dies or optional micro rolling cassettes.
Each drawing block is driven independently, allowing accurate synchronization throughout the drawing process. Compared with conventional slip drawing machines, the straight-line design provides:
• Higher dimensional accuracy
• Stable wire tension
• Better surface finish
• Reduced die wear
• Higher production efficiency
• Easier maintenance
The system can be integrated with automatic payoff, wire cleaning, lubrication, cooling, online diameter measurement, take-up systems, and PLC control for fully automated production.
Working Principle
The production process follows these steps:
1. Wire payoff
2. Wire descaling or cleaning
3. Lubrication
4. Multi-pass wire drawing through carbide or diamond dies
5. Independent capstan tension control
6. Water cooling
7. Online wire inspection (optional)
8. Automatic take-up
Each drawing pass gradually reduces the wire diameter while maintaining uniform deformation, ensuring excellent mechanical properties and surface quality.
Main Technical Specifications
Item Specification
Inlet Wire Diameter 1–15 mm
Number of Drawing Blocks 2–21
Block Diameter 200, 300, 400, 500, 560, 630, 710, 800, 900, 1000, 1200 mm
Speed Control Back Pull Control
Design Speed Up to 300 m/min (Higher speed versions available upon request)

Key Features
Independent Block Drive
Each capstan operates independently, providing stable wire tension throughout the drawing process.
Advanced PLC Control
Customers can choose from:
• Siemens
• Mitsubishi
• Rockwell
The control system offers automatic speed synchronization, production monitoring, fault diagnosis, and recipe management.
Adjustable Back Tension
Back pull control minimizes wire vibration and ensures stable drawing performance, especially for larger diameter reductions.
Universal Drawing System
The machine can operate with:
• Wire drawing dies
• Micro rolling cassettes
This flexibility allows manufacturers to produce different wire profiles using the same production platform.
Efficient Cooling System
A complete cooling system effectively reduces die temperature and wire heating, extending die life and improving surface quality.
AC or DC Drive Options
Depending on customer requirements, the machine can be equipped with either AC variable-frequency motors or DC motors for smooth acceleration and precise speed control.
Turnkey Production Line
CRM provides complete production solutions including:
• Automatic payoff
• Descaling equipment
• Drawing machine
• Cooling system
• Online measuring equipment
• Take-up machine
• Electrical control system
• Installation and commissioning
Advantages of Straight Line Wire Drawing Machines
Compared with conventional slip-type wire drawing machines, straight line machines offer several significant advantages.
Better Diameter Accuracy
Independent tension control ensures consistent wire diameter throughout production.
Higher Productivity
Stable operation allows continuous high-speed production with fewer interruptions.
Longer Die Life
Optimized lubrication and cooling reduce friction and minimize die wear.
Improved Surface Quality
Stable wire movement reduces scratches, surface defects, and vibration marks.
Lower Maintenance Costs
Modular machine design simplifies maintenance and reduces downtime.

Materials That Can Be Processed
CRM straight line wire drawing machines are suitable for various low carbon steel materials, including:
• SAE1006
• SAE1008
• SAE1010
• SAE1012
• Q195
• Q235
• Other low carbon steel grades

Typical Applications
Low carbon steel wire produced by straight line drawing machines is widely used in:
• Nail manufacturing
• Wire mesh production
• Construction wire
• Binding wire
• Welding wire
• Steel rope preparation
• Fasteners
• Fence wire
• Spring wire
• General industrial wire

Typical Machine Configurations
CRM offers flexible configurations according to production requirements.
Model Drawing Blocks Typical Application
CRM-SL-300 2–6 Heavy reduction
CRM-SL-560 6–10 Medium wire production
CRM-SL-710 8–12 High-speed production
CRM-SL-800 10–16 Large-capacity production
CRM-SL-1000 12–21 Industrial continuous production
Custom configurations are available based on wire diameter, production capacity, and finished product requirements.

Why Choose CRM?
CRM has many years of experience in designing and manufacturing precision wire processing equipment for customers worldwide.
Our advantages include:
• Professional engineering team
• Customized machine design
• Reliable European-standard components
• Complete turnkey projects
• Global installation and technical support
• Stable machine performance
• Competitive factory pricing
Whether you need a standalone drawing machine or a complete wire production line, CRM can provide a solution tailored to your manufacturing requirements.
Request a Customized Solution
Every wire production process is different. To recommend the most suitable straight line wire drawing machine, please provide:
• Raw material grade
• Input wire diameter
• Finished wire diameter
• Production speed
• Coil weight
• Annual production capacity
Our engineers will recommend the optimal machine configuration and provide a customized technical proposal.
